007E Universal Shower Seal for 8 mm Glass

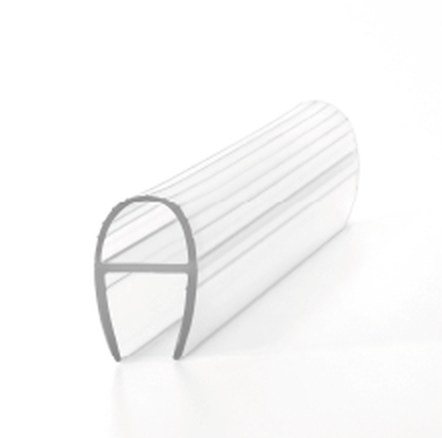

007E is a universal seal that can be fitted on the side or the bottom of the glass, made for 8 mm glass. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

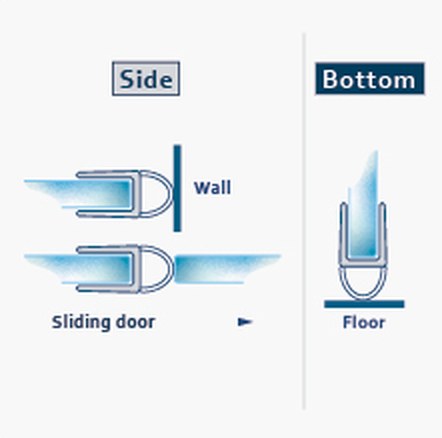

The catalogue shows it fitted both ways: as a side seal against a wall or panel, and as a bottom seal on the floor. The fitting diagram shows it on a sliding door.
007E sizes
| Glass thickness | A (mm) |
|---|---|
| 8 mm (5/16") | 10 |

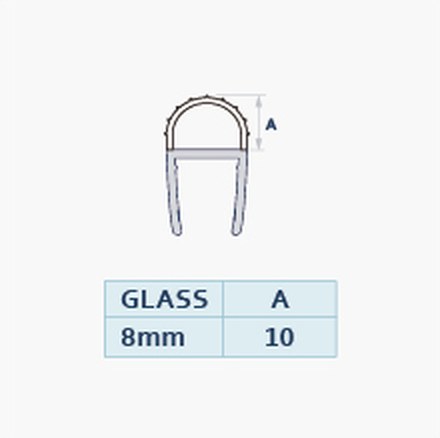

Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order 007E
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for 007E Ask for a free sample
Similar universal seals
003, 003A1, 003D, 001, 019, 019B, 027D, 005C. All models of this type: Versatile door seals. Every model: GoldRays seal models.
FAQ
What glass thickness does 007E fit?
007E is listed for 8 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Can 007E be made curved for a quadrant or curved screen?
Most GoldRays bottom seals can be made pre-curved to the radius of your glass. Send the radius, or the length and depth of the curve.
Can I get 007E in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for 007E, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
