Curved Shower Screen Seal Manufacturer and Supplier
GoldRays is a China-based manufacturer and B2B supplier of curved shower screen seals, pre-curved bottom seals and custom sealing profiles. We work with shower-enclosure brands, importers, distributors and OEM/ODM buyers that need an existing curved profile matched or a new geometry reviewed.
A curved screen requires more information than a straight glass panel. The glass thickness and lower gap matter, but the curve, arc length, end-to-end width, installed orientation, door movement and tray or threshold geometry also affect profile selection. A seal that looks similar in a front-view photograph may not follow the same curve or place the soft sealing section in the correct position.
GoldRays publishes pre-curved bottom-seal references for curved shower screens with curvature up to 8°. This is a range statement, not a guarantee that one profile fits every screen. The suitable model, dimensions, material, curvature and installation direction are confirmed from the buyer’s drawing, sample and application information.
Buyers comparing related applications can also review bath screen seals, shower door bottom seals and the wider GoldRays product directory.
How to Specify a Curved Shower Screen Seal
Start with the complete glass and enclosure geometry. Do not select only from a product photograph.
| Specification item | What the buyer should provide | Why it matters |
|---|---|---|
| Glass thickness | Measured thickness and tolerance, when available | Determines the gripping or attachment section that must be reviewed |
| Curved geometry | Dimensioned drawing, radius if known, arc length, chord width and curve height | Shows whether an existing pre-curved profile can follow the required shape |
| Bottom gap | Gap at both ends and at the centre of the curve | Helps review the required soft-fin or sealing-section reach |
| Installed orientation | Photographs showing the wet-facing side, top, bottom and direction of movement | Prevents a visually similar profile from being assessed in the wrong direction |
| Existing reference | Complete sample, cross-section drawing, model number or clear end-view photographs | Allows comparison with an existing GoldRays profile before a custom route is considered |
| Project requirement | Required length, expected quantity, destination market and packaging or branding brief | Supports the technical and commercial review for a B2B or OEM/ODM project |
If the curve is not defined on the drawing, provide several controlled measurements and photographs with a scale reference. Keep the full cross-section of any removed sample intact.
Published Pre-Curved Seal References

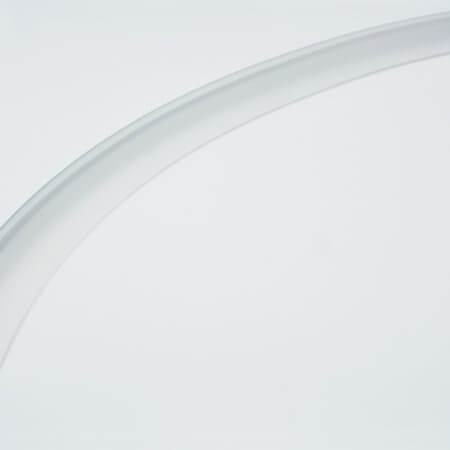

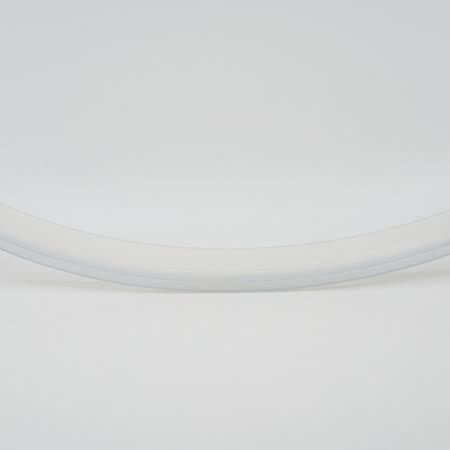

The two images below are the existing GoldRays curved-seal references retained from this page. They show the published product form, but they are not a complete specification and do not replace a dimensioned drawing or project confirmation.
Use the Images as References, Not Specifications
Confirm the application before using either reference. Curved screens can differ in radius, glass thickness, lower gap, movement and installed direction even when the visible shape appears similar.
Send the following with an enquiry:
- A dimensioned screen or enclosure drawing.
- The glass thickness and measured lower gap.
- The radius or the measurements needed to reconstruct the curve.
- End-view photographs or a complete physical sample of the current seal.
- The required profile length and installed orientation.
GoldRays will compare the supplied information with the published references and relevant existing profiles before confirming the next technical step.
Pre-Curved, Existing Profile, or Custom Review?
An existing pre-curved profile is the first route to review when the buyer can provide a model reference, complete sample or dimensioned cross-section that matches the installed geometry. The published GoldRays range includes pre-curved bottom-seal references for curved shower screens with curvature up to 8°, subject to model and application confirmation.
An existing-profile match may also be possible when a buyer has an unmarked or discontinued seal. Provide the complete cross-section, glass thickness, lower gap, curve information and installed photographs. A front-view image alone normally does not show the gripping channel, rigid and soft sections, or the direction in which the profile must work.
A custom review is appropriate when no existing profile matches the geometry or when a new shower screen is being developed. GoldRays can review a buyer-supplied drawing, sample and OEM/ODM brief. See custom shower door seal profiles for the technical information used in a custom-extrusion review.
Curved Screen Applications to Describe
State the actual enclosure type rather than using only the word “curved.” Relevant enquiries may involve a curved bath screen, curved shower door, rounded fixed panel, P-shaped screen or another project-specific glass geometry. GoldRays will confirm whether an existing curved reference, another standard profile or a custom route should be reviewed.
Include the door or panel movement. A fixed screen, hinged bath screen and moving shower door place different demands on the lower-edge profile. The seal must be assessed with the adjacent tray or threshold, hardware, direction of travel and contact points.
OEM/ODM Review for Curved Shower Seals
A controlled B2B review normally follows these steps:
- Define the enclosure. Record the glass arrangement, curve, door movement, lower gap, adjacent surface and wet-facing side.
- Review the reference. Compare the buyer’s model, sample or drawing with the published curved references and other relevant profiles.
- Clarify the specification. Confirm critical dimensions, orientation, material requirements, length and project documentation in writing.
- Evaluate the proposed profile. Check a sample or agreed reference in the actual enclosure or a representative assembly.
- Approve the complete system. Confirm fit, movement, contact points and water-management behaviour before production approval.
The broader GoldRays range includes clear PVC and polycarbonate sealing profiles. The material and construction for a curved-seal enquiry are confirmed per project rather than inferred from the appearance of a photograph. Branding and export packaging can be included in the OEM/ODM review when the buyer provides the relevant files and brief.
Fit and Water-Control Considerations
A curved shower screen seal is one component of the finished enclosure. Its performance depends on the profile fit, glass and hardware tolerances, lower gap, curve, tray or threshold geometry, alignment and installation direction. No individual seal should be treated as a guarantee of complete water containment.
Do not force a profile around a curve unless the specific construction and geometry have been reviewed for that use. An unsuitable profile may lift at the ends, twist, create an unintended contact point or obstruct normal door movement. Evaluate the proposed option in the intended enclosure.
For broader screen-seal sourcing, visit the shower screen seal supplier page. For other closure geometries, review magnetic shower door seals.
Frequently Asked Questions
Does GoldRays manufacture curved shower screen seals?
Yes. GoldRays is a China-based manufacturer and B2B supplier of shower door seals and custom sealing profiles. The published range includes pre-curved bottom-seal references for curved shower screens, with the suitable model and specification confirmed for each project.
What does “up to 8° curvature” mean on this page?
It is the published range statement for the existing pre-curved references, not a universal fit claim. The screen geometry and the relevant seal model must be reviewed together before suitability is confirmed.
Can you identify a curved seal from a photograph?
Photographs help show the installed position, but a photograph alone may not reveal the complete cross-section or curve. Send a physical sample or dimensioned drawing where possible, together with the glass thickness, lower gap and orientation.
Which measurements are needed for a curved screen?
Provide the glass thickness, lower gap, required length, end-to-end width, curve height, arc length and radius when known. Also include the door movement, wet-facing side and tray or threshold details.
Can a straight shower seal be bent around curved glass?
Do not assume that a straight profile will work on a curved screen. The material, rigid and soft sections, attachment method and required curve must be reviewed. GoldRays will assess whether an existing curved reference, another profile or a custom route is appropriate.
Can GoldRays review a custom curved shower seal?
Yes. If no existing profile is suitable, GoldRays can review a buyer-supplied drawing, sample and OEM/ODM brief. Final material, dimensions, tooling route and commercial terms are confirmed for the individual project.
How do I request a technical review or quotation?
Email goldrays@showerdoorseal.org with the drawing or sample information, glass thickness, curve measurements, lower gap, required length, photographs, destination market and expected quantity. You can also use the GoldRays contact page.
Request a Curved Seal Review
Send your curved-screen drawing, existing seal reference or sample information to goldrays@showerdoorseal.org. State whether the enquiry is for an existing-profile match, a replacement programme or an OEM/ODM project. GoldRays will review the supplied details and confirm the next technical step.
