Sliding Shower Door Seals Manufacturer and Supplier
GoldRays manufactures sliding shower door seals and supplies established sealing profiles for B2B buyers. The published models below provide profile images and dimensional references for sliding shower enclosures, bath screens and related glass-panel systems.
A sliding door seal should be selected from the complete enclosure geometry, not from the door label alone. Provide the glass thickness, panel movement, overlap or meeting arrangement, mounting edge and the gap that the profile must address. GoldRays can compare a drawing, sample or clear side-view photograph with an existing profile before a custom route is considered.
Information needed to select a sliding shower seal
| Buyer input | What to show |
|---|---|
| Sliding arrangement | Show the number of panels and which panel or panels move. |
| Seal position | Identify the leading edge, trailing edge, overlapping edge, bottom edge or another mounting position. |
| Glass thickness | Measure the glass that receives the profile; do not estimate from the overall enclosure. |
| Gap and contact direction | Record the distance to the adjacent panel, wall, floor or threshold and show how the lip should meet it. |
| Existing profile | Send a cross-section drawing, cut sample or clear side-view photographs with measurements. |
| Project requirements | Include required length, expected quantity, destination market and any project-specific packaging or documentation needs. |

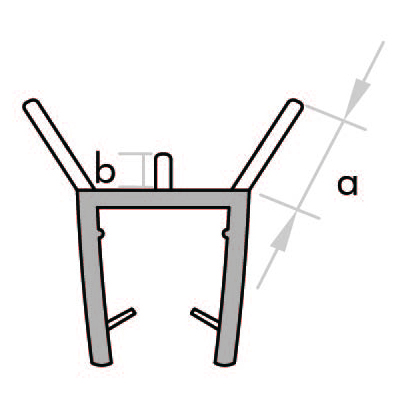

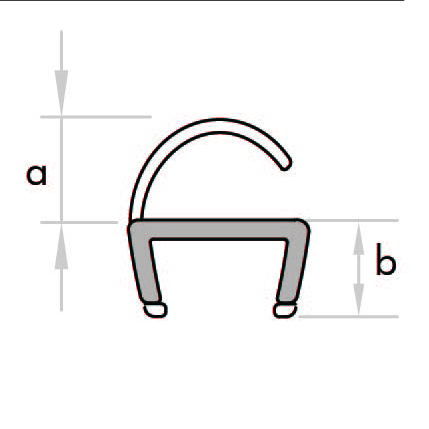

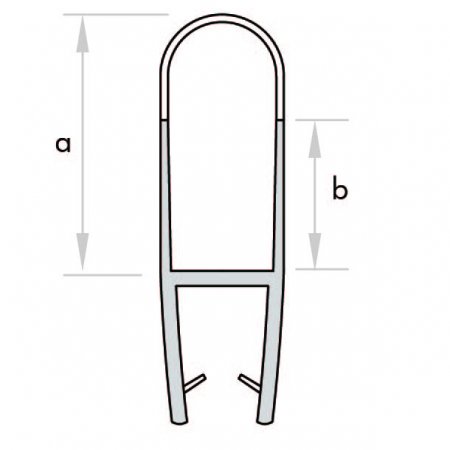

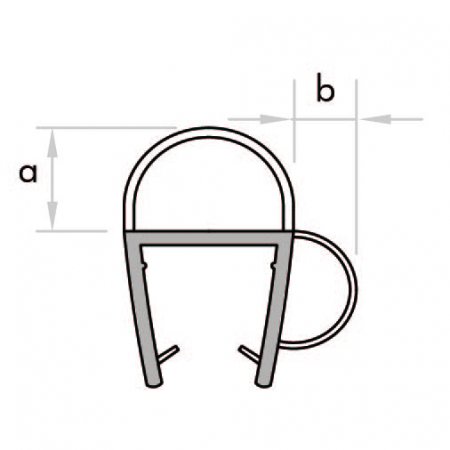

The model tables are published references and should be read together with the corresponding images. A similar dimension does not by itself confirm compatibility; the complete section and intended movement must also be reviewed.
Models

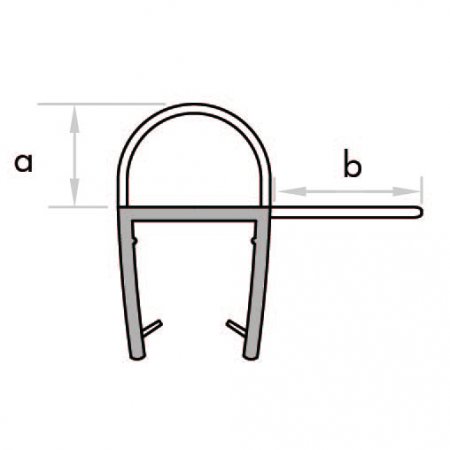

| Glass | a | b |
|---|---|---|
| 10mm | 9 | 5 |

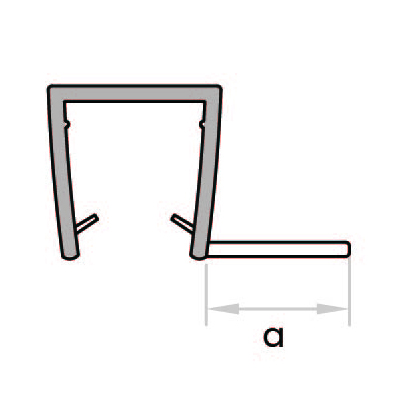

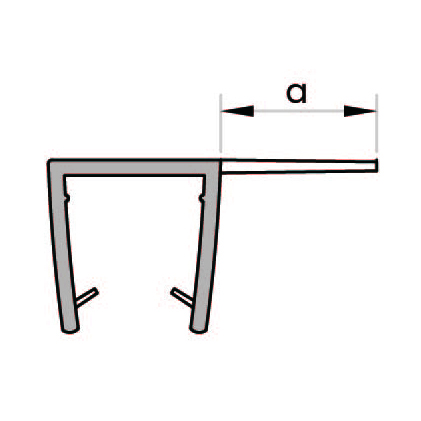

| Glass | a | b |
|---|---|---|
| 4mm | 12 | N |
| 6mm | 8,12,16,25 | N |
| 8mm | 8,12,16,25 | N |
| 10mm | 8,12,16,25 | N |
| 12mm | 16 | N |
| 15mm | 16,25 | N |
| Glass | a | b |
|---|---|---|
| 6mm | 14 | 8 |
| 6mm | 22 | 16 |
| 6mm | 28 | 13 |
| 8mm | 31 | 21 |
| 10mm | 20 | 13 |
| 10mm | 28 | 10 |
| 10mm | 38 | 16or26 |
| 10mm | 50 | 20 |
| 12mm | 23 | 13 |
| 12mm | 28 | 12 |
| 12mm | 38 | 25 |
| Glass | a | b |
|---|---|---|
| 6mm | 18 | 10 |
| 8mm | 18 | 10 |
| Glass | a | b |
|---|---|---|
| 10mm | 9 | 10 |
| Glass | a | b |
|---|---|---|
| 10mm | 9 | 10 |
| Glass | a | b |
|---|---|---|
| 10mm | 8 | N |
| 12mm | 8 | N |
| Glass | A | B |
|---|---|---|
| 6mm | 16 | N |
| 8mm | 16 | N |
| 10mm | 16 | N |
| 12mm | 22 | N |
| Glass | A | B |
|---|---|---|
| 6mm | 3.2 | 1.7 |
| 8mm | 3.2 | 1.7 |
| Glass | A | B |
|---|---|---|
| 10mm | 4 | 5.5 |
How sliding shower door profiles are reviewed

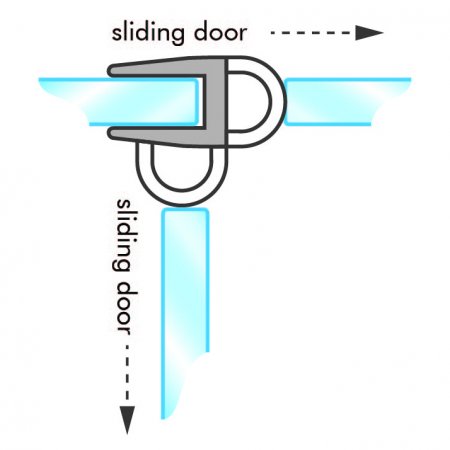

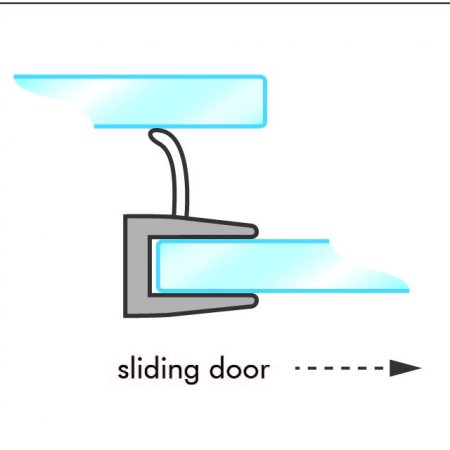

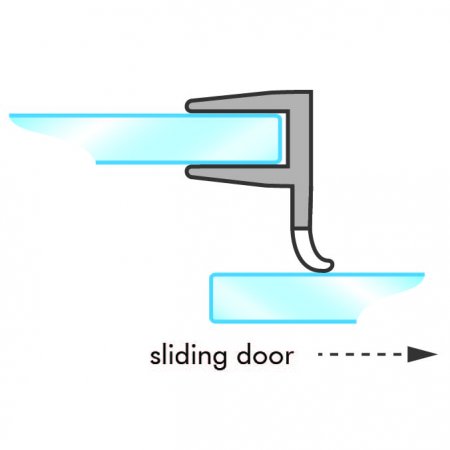

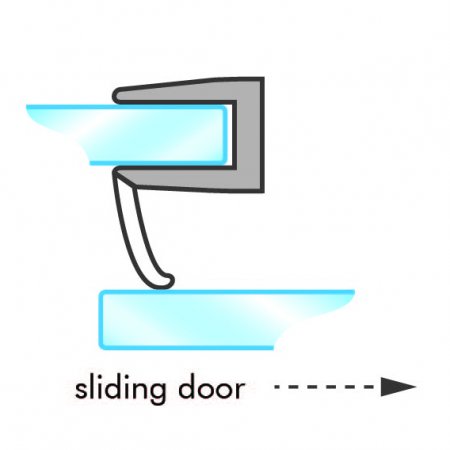

Panel movement and overlap

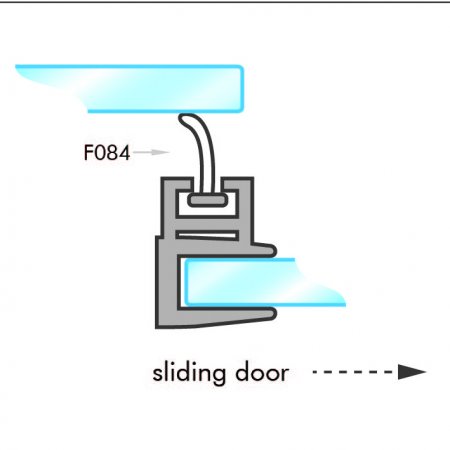

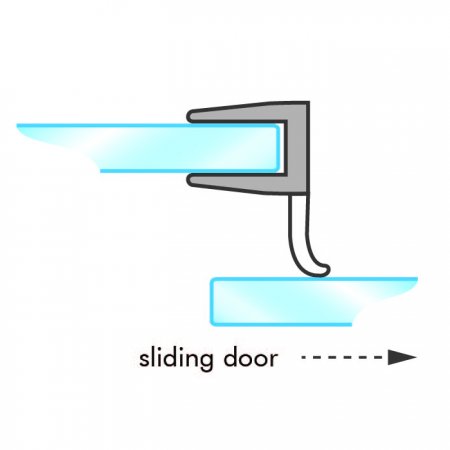

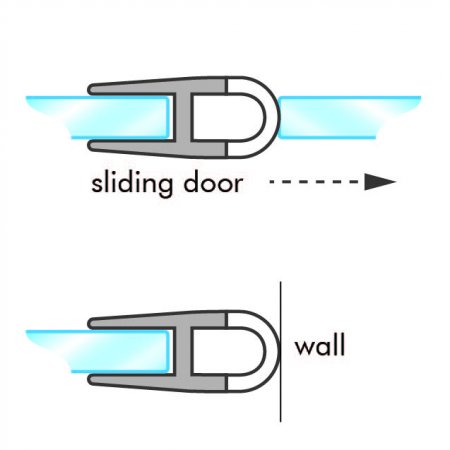

Sliding enclosures can use one or more moving panels, and the relevant edges may overlap, meet or pass one another. A profile must be reviewed so its rigid channel and flexible lip do not obstruct the intended travel. Photographs should show the door in both open and closed positions when possible.
Glass thickness and gripping channel
The measured glass thickness is a primary input because the profile channel must correspond to the glass edge. Use the published table for the selected model as a reference, then confirm the complete section before ordering. Do not infer suitability from one table value without checking the model image and application.
Gap, lip direction and mounting edge

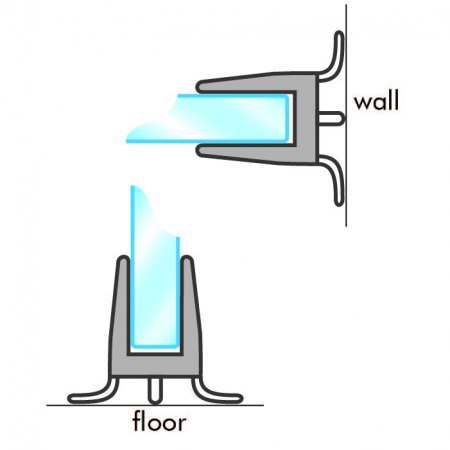

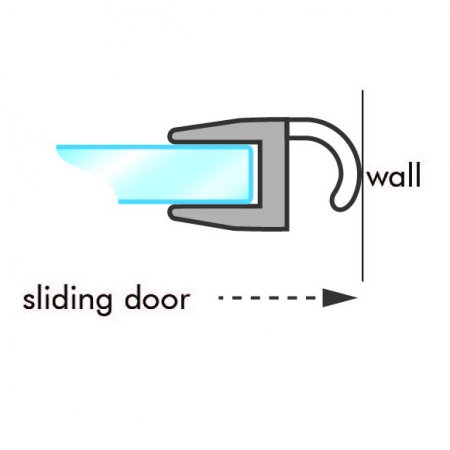

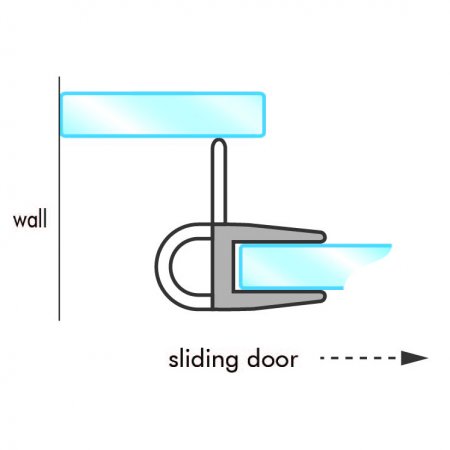

Record the gap at the actual seal position and show the direction in which the lip must contact an adjacent surface. The same sliding enclosure may require different profile functions at different edges, so each position should be identified on a drawing or photograph.
Standard profile or custom route
An established model may shorten the profile-selection process when its section and dimensions match the project. If the published range does not provide an appropriate starting point, GoldRays can review the enquiry through its custom shower door seal profile process using a drawing or physical sample.
Sliding seal enquiry workflow
- Application review: identify the sliding arrangement, seal position, glass thickness and gap.
- Profile comparison: compare the buyer’s section, sample or photographs with the published models.
- Specification clarification: confirm dimensions, material, length, quantity, market and packaging requirements for the project.
- Sample or specification confirmation: agree the profile information that will be used for the supply review.
- Commercial review: confirm the requested B2B order and project details before production planning.
Related categories may also be relevant to the same enclosure. Review bottom shower door seals for the lower edge, magnetic shower door seals for compatible meeting-edge closures, and the standard shower seal range for other door movements and glass-edge arrangements.
Frequently asked questions
Does GoldRays manufacture sliding shower door seals?
Yes. GoldRays manufactures and supplies sliding shower door seal profiles for B2B buyers. The published models on this page provide images and dimension tables for profile comparison.
How do I choose the correct sliding door seal?
Provide the glass thickness, panel movement, seal position, gap, contact direction and a profile cross-section or clear photographs. The enclosure geometry should be reviewed together with the model information.
Can I select a profile using glass thickness only?
No. Glass thickness is necessary, but the channel shape, lip geometry, gap, mounting edge and door movement also affect suitability.
Can GoldRays match an existing sliding seal sample?
GoldRays can review a cut sample, cross-section drawing or clear side-view photographs against existing profiles. Include measurements and photographs of the installed position.
Are bottom and magnetic profiles the same as sliding seals?
They are separate profile functions, although one enclosure may use more than one category. Review each mounting position independently and confirm how the profiles interact when the panels move or close.
Can GoldRays develop a custom sliding profile?
A custom route can be reviewed when an existing model does not match the required section. Send the drawing or sample, application details and expected project requirements for evaluation.
What should I send for a quotation?
Email goldrays@showerdoorseal.org with the model or profile drawing, glass thickness, gap, sliding arrangement, required length, expected quantity and destination market.
Request a sliding shower seal review
Compare the published models and then send the available measurements, drawings or sample photographs to goldrays@showerdoorseal.org. GoldRays will review whether an existing profile can be evaluated for the application or whether a custom discussion is more appropriate.
