Shower Glass Connector Profiles Manufacturer and Supplier
GoldRays manufactures shower glass connector profiles and supplies established models for B2B and OEM/ODM projects. The published range below provides profile images and dimensional references for connecting or separating adjacent glass edges in shower enclosures, bath screens and related glass-panel systems.
A connector profile should be selected from the complete panel arrangement rather than the model name alone. Provide the glass thickness for each panel, the relationship between the glass edges, the intended profile position, the gap and a clear cross-section drawing or sample. GoldRays can compare this information with an existing model before a custom route is considered.
Information needed to select a shower glass connector profile
| Buyer input | What to provide |
|---|---|
| Panel arrangement | Show whether the panels meet in line, at a corner or in another fixed or moving relationship. |
| Profile position | Mark the exact glass edges that receive the connector profile. |
| Glass thickness | Measure each relevant panel; do not estimate from the overall enclosure. |
| Gap and orientation | Record the distance and direction between the panels at the intended connection. |
| Existing profile | Send a cut sample, cross-section drawing or clear side-view photographs with measurements. |
| Project requirements | Include required length, expected quantity, destination market and packaging or documentation needs. |
The model tables are published dimensional references and should be reviewed together with the corresponding images. A similar glass-thickness value does not by itself confirm compatibility; the complete section, panel orientation and intended function must also be checked.

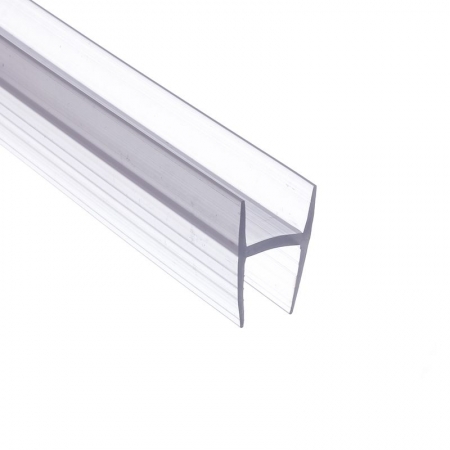

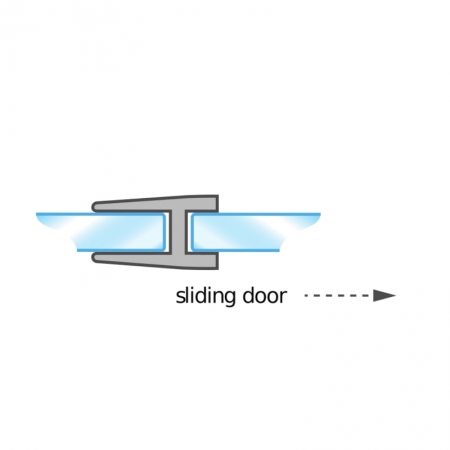

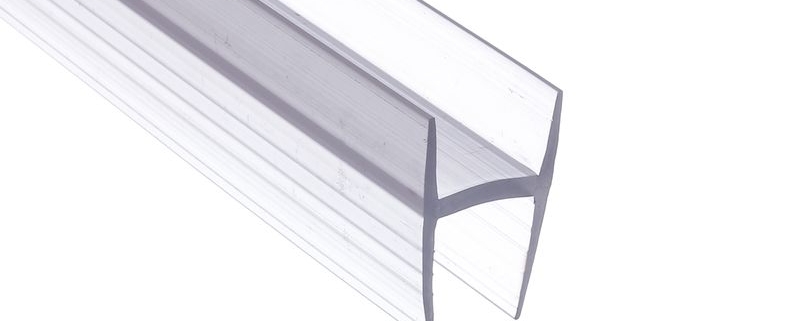

Models
| Glass | a | b |
|---|---|---|
| 6-8mm | 6.3 | 18 |
| 8-10mm | 8 | 20 |
| Glass | a | b |
|---|---|---|
| 4mm | N | 19 |
| 6mm | N | 20 |
| 8mm | N | 22 |
| 10mm | N | 22 |
| 12mm | N | 22 |
| Glass | a | b |
|---|---|---|
| 6-8mm | 8 | 6 |
| Glass | a | b |
|---|---|---|
| 6mm | 24 | N |
| 8mm | 28 | N |
| 12mm | 28 | N |
| Glass | a | b |
|---|---|---|
| 10mm | 10.2 | 10 |
| Glass | a | b |
|---|---|---|
| 6mm | 8 | 4.8 |
| 8mm | 10 | 5 |
| 10mm | 12 | 4.8 |
| 12mm | 14 | 4.8 |
| Glass | a | b |
|---|---|---|
| 8mm | 8 | 4.5 |
| Glass | a | b |
|---|---|---|
| 8mm | 10.5 | 4.5or10 |
| 10mm | 12.5 | 5.5or10 |
| 12mm | 14.5 | 5.5or10 |
How shower glass connector profiles are reviewed
Panel relationship and connector position
Begin with a simple enclosure drawing that identifies each glass panel and the edge where the connector profile will be installed. Show whether the panels are fixed or moving and how their edges align. This prevents a profile from being assessed without the surrounding geometry.
Glass thickness and gripping channels
Measure the actual glass thickness at every relevant edge. Some connector profiles interact with more than one panel, so the measurements should be supplied separately when they differ. Use the published model table as a reference and confirm the full cross-section before ordering.
Gap, direction and adjacent components
Record the gap and the direction in which the panels meet. Also show nearby hinges, sliding components, thresholds or seals that may affect the available space. A connector profile should be reviewed as part of the complete enclosure rather than as an isolated section.
Established model or custom route
An existing model may provide a suitable starting point when its section and dimensions correspond to the project. If the published range does not match the required geometry, GoldRays can review the enquiry through its custom shower door seal and profile process using a drawing or physical sample.
Connector profile enquiry workflow
- Application review: identify the panels, glass thicknesses, connector position, orientation and gap.
- Profile comparison: compare the buyer’s drawing, sample or photographs with the published models.
- Specification clarification: confirm the section, dimensions, length, expected quantity, market and packaging requirements.
- Sample or specification confirmation: agree the profile information used for the supply review.
- Commercial review: confirm the B2B project details before production planning.
Other profile functions may be required in the same enclosure. Review magnetic shower door seals for compatible closing edges, bottom shower door seals for the lower glass edge, sliding shower door seals for moving panels, and the standard shower seal range for additional glass-edge arrangements.
Frequently asked questions
Does GoldRays manufacture shower glass connector profiles?
Yes. GoldRays manufactures and supplies glass connector profiles for B2B buyers. The published models provide images and dimension tables for comparison with a buyer’s panel arrangement.
How do I choose the correct glass connector profile?
Provide the panel relationship, connector position, glass thicknesses, gap, orientation and a cross-section drawing or clear photographs. Review the complete section and application rather than one dimension alone.
Can I select a connector using glass thickness only?
No. Glass thickness is necessary, but the channel geometry, relationship between panels, gap, direction and nearby enclosure components also affect suitability.
Can GoldRays compare an existing connector profile sample?
GoldRays can review a cut sample, cross-section drawing or clear side-view photographs against existing models. Include measurements and photographs that show the installed position.
Are these connector profiles the same as metal clamps or hinges?
This page presents GoldRays profile models and their dimensional references. Do not assume that a profile performs the structural function of a clamp, hinge or other hardware component; identify the intended function when sending the enquiry.
Can GoldRays review a custom connector profile?
A custom route can be discussed when an existing model does not match the required section. Send the drawing or sample, application details and expected project requirements for evaluation.
What should I send for a quotation?
Email goldrays@showerdoorseal.org with the model or profile drawing, glass thicknesses, panel arrangement, gap, required length, expected quantity and destination market.
Request a glass connector profile review
Compare the published models and send the available measurements, drawings or sample photographs to goldrays@showerdoorseal.org. GoldRays will review whether an existing profile can be evaluated for the application or whether a custom discussion is more appropriate.
