Magnetic Shower Door Seals

Supplier facts

MOQ	500 m per model as a guide. Smaller runs are often possible — just ask.
Lead time	3–4 weeks for standard orders, depending on quantity.
Custom profiles	One-time tooling from about USD 300–400. A profile tooled for you stays exclusive to you.
Samples	Free samples on request — short cuts or lengths up to 1 m.
For a quote	Tell us the application, glass thickness, length and quantity, and your market — a drawing or photo helps. Not required, just faster.
Testing	Xenon-arc 300 h: no yellowing · Mould test: Grade 0 · Cleaner exposure: no discolouration or haze · REACH SVHC screening: passed — reports on request

Magnetic profiles for trade supply. Compare the way your panels meet, then check the drawings and dimensions.

Explore arrangements ↓View technical references

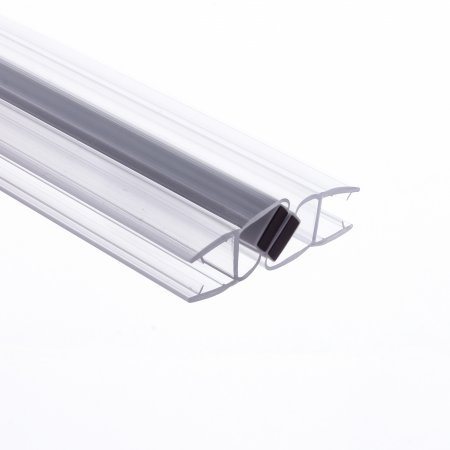

Featured product: S008A1W · View its drawing

Start with the arrangement

How do your panels meet?

Choose a reference to see the real profile and its drawing.

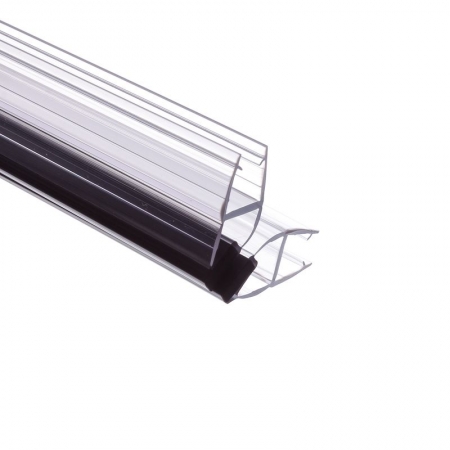

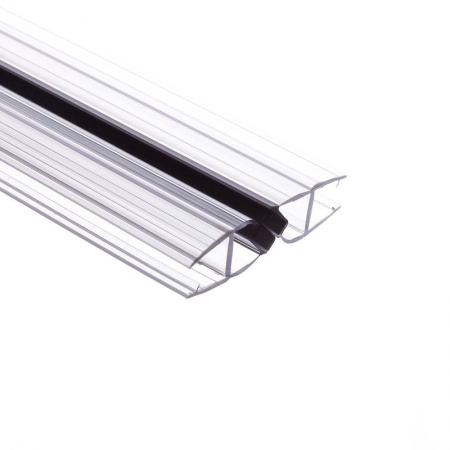

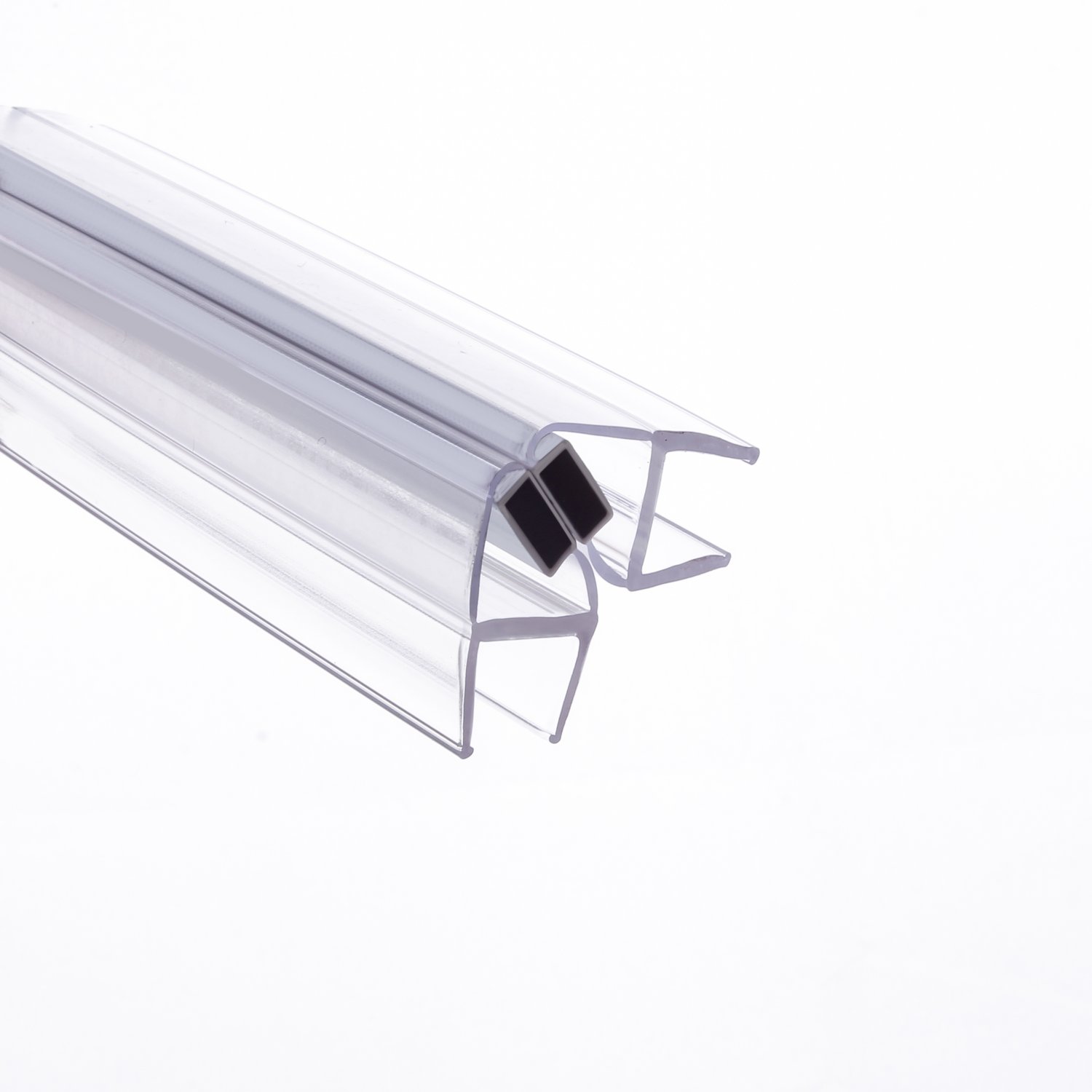

S008A1W pair with clear channels and mating magnetic faces

S008A1W · Reference example

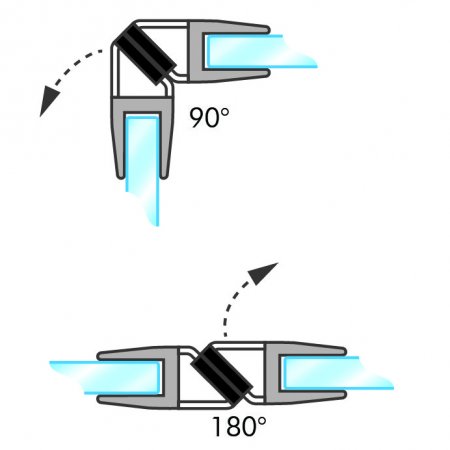

Straight or right-angle closure

See the 180° and 90° arrangements in the original drawing.

See profile and drawing →

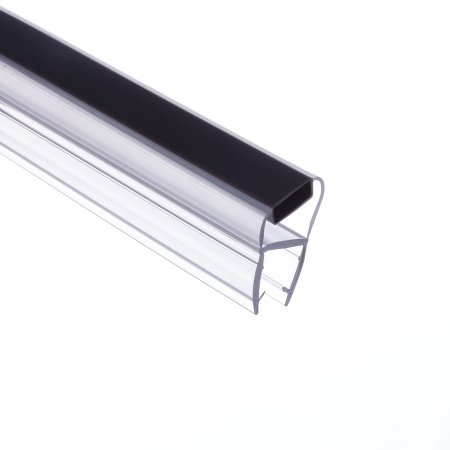

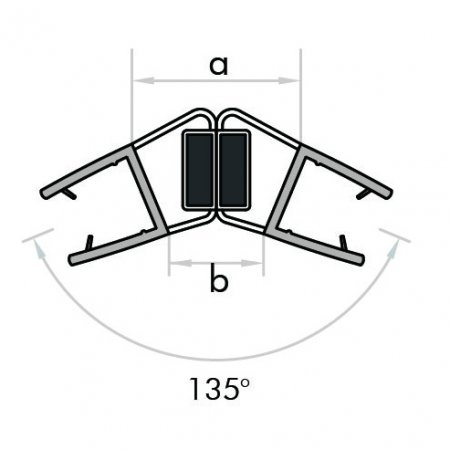

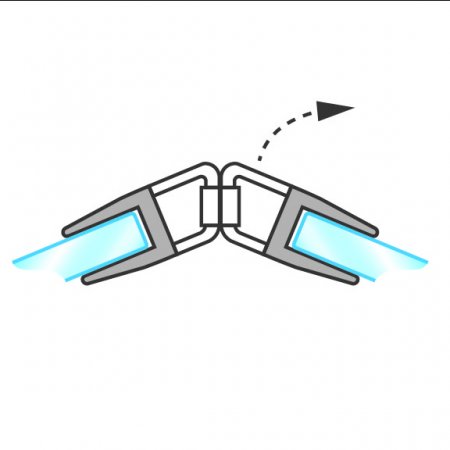

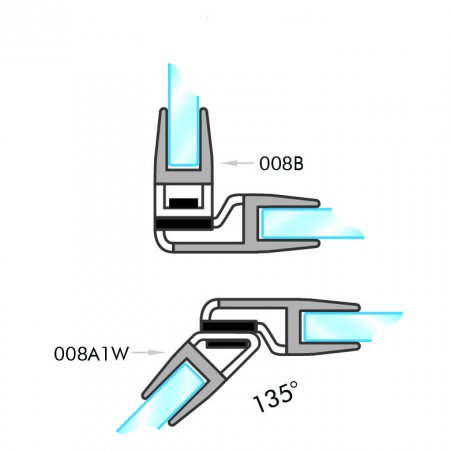

008C1 · Reference example

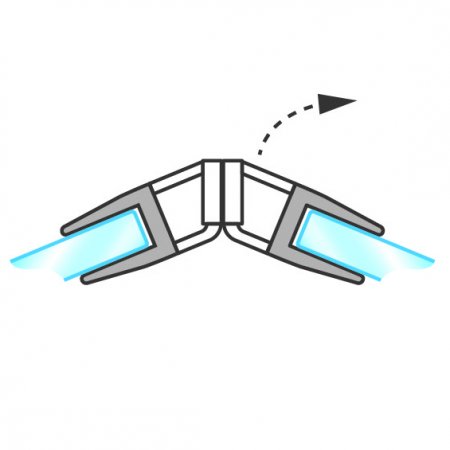

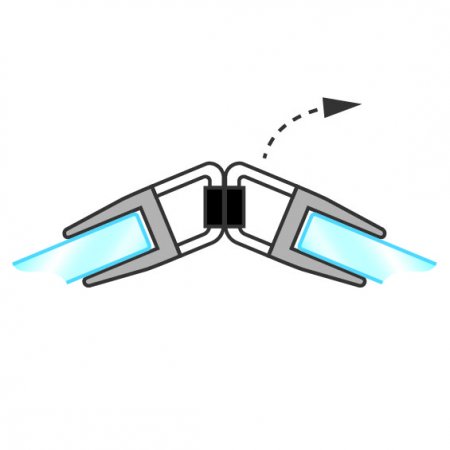

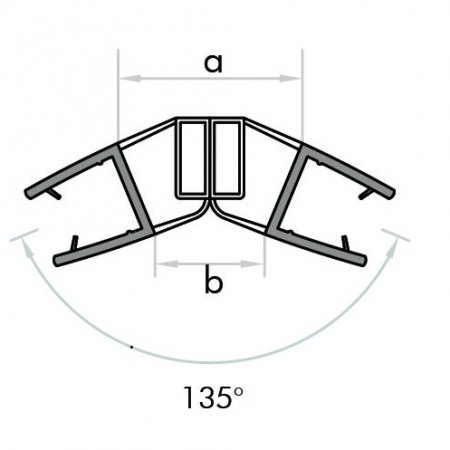

Angled glass meeting

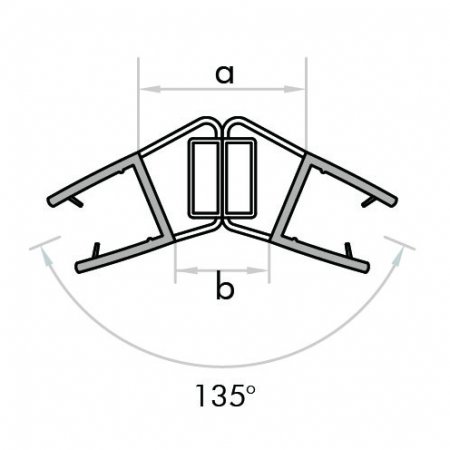

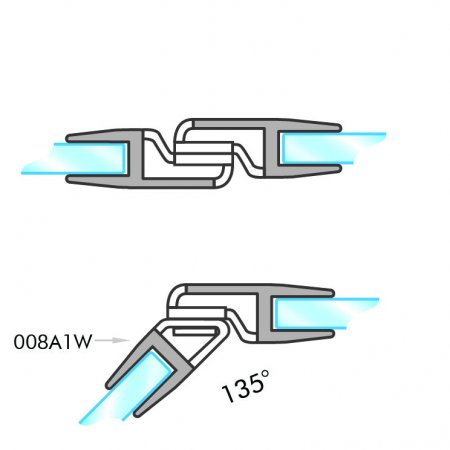

Compare the illustrated 135° meeting edges and opening direction.

See profile and drawing →

008B · Reference example

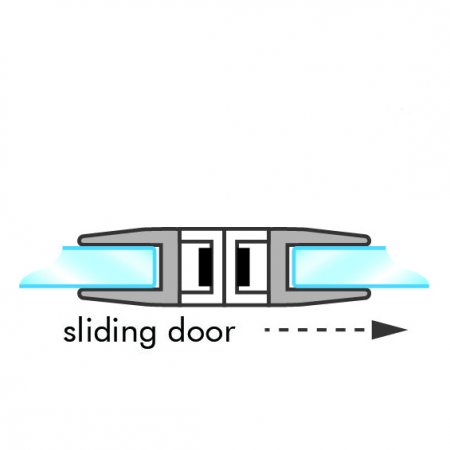

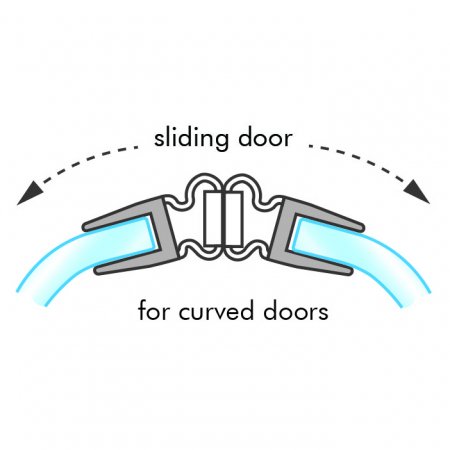

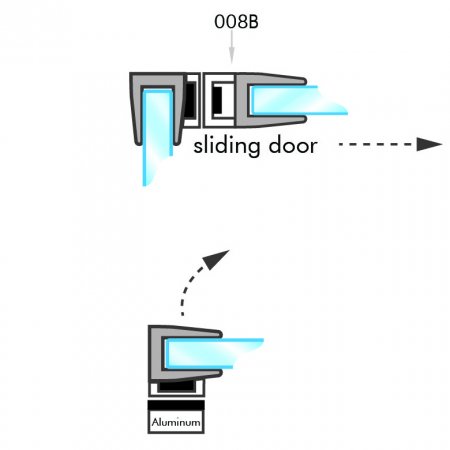

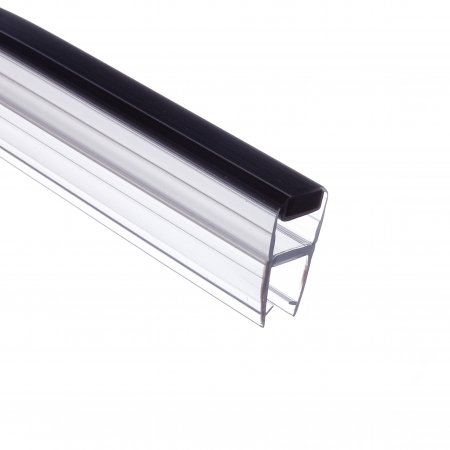

Sliding closure

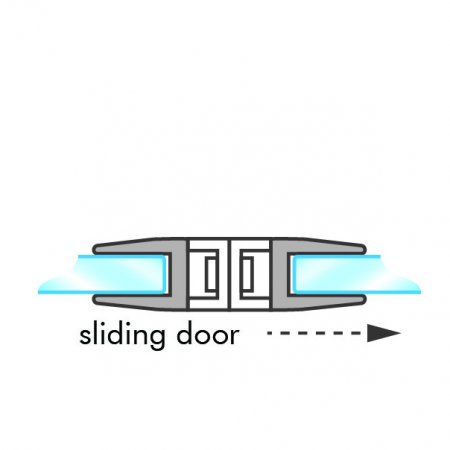

Check the moving panel, opposing profile and closed position.

See profile and drawing →

Use the drawing to check both parts, glass thickness, gap and door movement. A similar appearance or angle alone does not establish fit.

A simpler way to identify the part

Show us the door and the old pair.

A whole-door photo, an end view of each old strip and your measurements help identify the correct reference.

For trade enquiries, include required lengths and quantity. For a single spare, start with your enclosure maker or a local spare-parts retailer.

Contact GoldRays

What to photograph and measure →

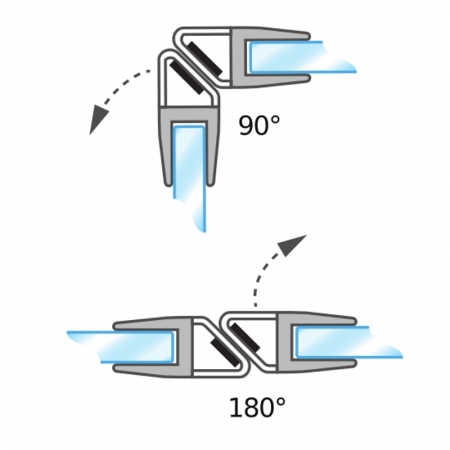

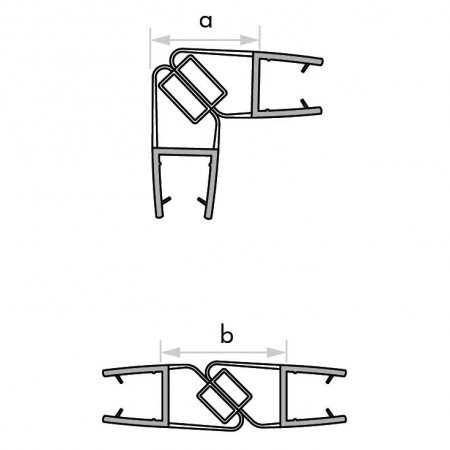

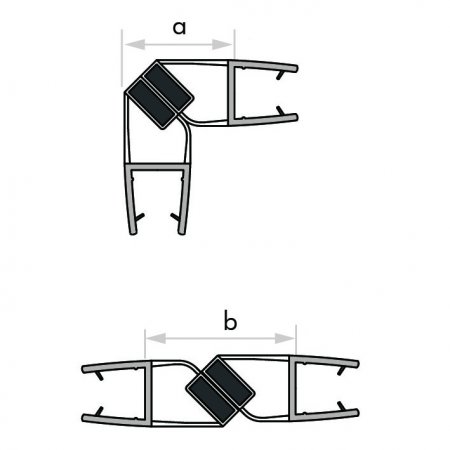

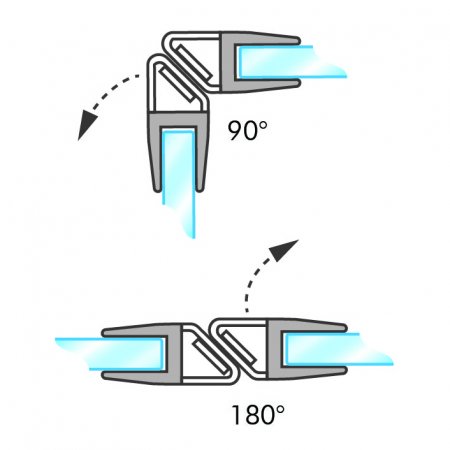

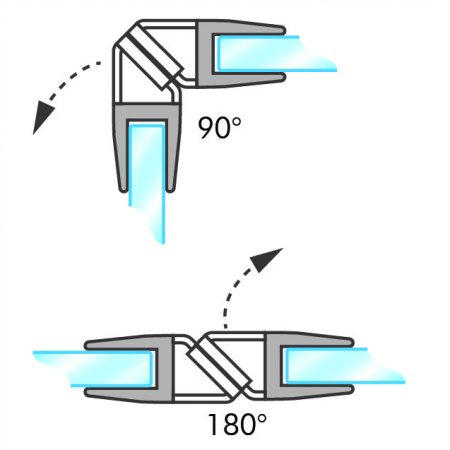

Original S008A1W arrangement drawing with 90-degree and 180-degree examples — Use the complete drawing, including both halves and the movement shown.

Technical reference

Drawings and dimensions, when you need them.

Open a model to view its source images and dimensional table.

S008A1W · featured Superclear reference6, 8, 10 mm glass

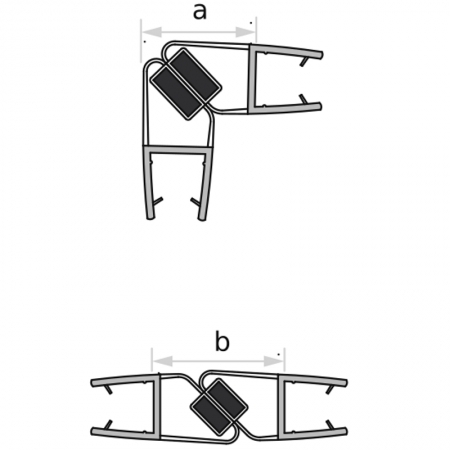

S008A1W original 90-degree and 180-degree arrangement drawing

S008A1W values from the published Superclear table.
Glass	a	b
6mm	16	20
8mm	17	22
10mm	17	20

This is S008A1W, a separate reference from 008A1W. View the source page and confirm the drawing and pair for your enclosure.

Browse 24 model references

Find a model code

24 of 24 model references

008A16, 8, 10, 12, 15 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	14	21
8mm	17	22
10mm	20	24
12mm	20	22.5
15mm	18	20

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

008A1W6, 8, 10, 12, 15 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	14	21
8mm	17	22
10mm	20	24
12mm	20	22.5
15mm	18	20

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

008A6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	16	22
*6mm	13	15
8mm	18	25
*8mm	15	15
10mm	18	25
*10mm	16	20
12mm	17	26

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

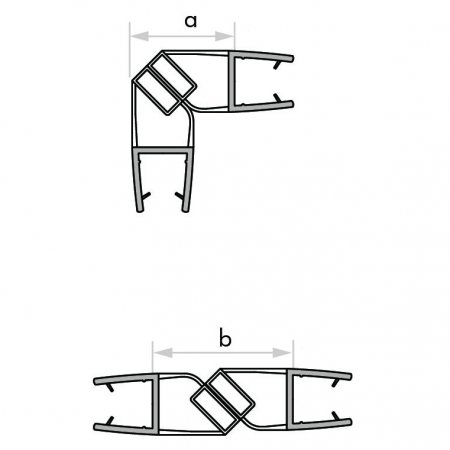

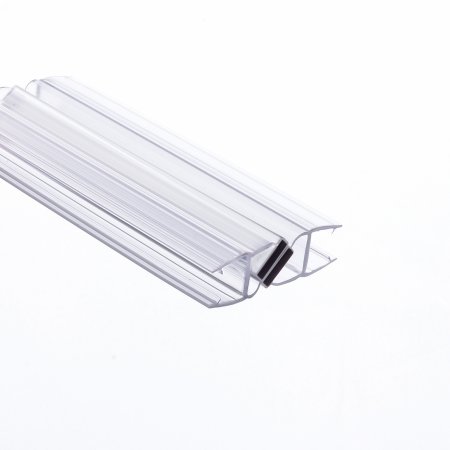

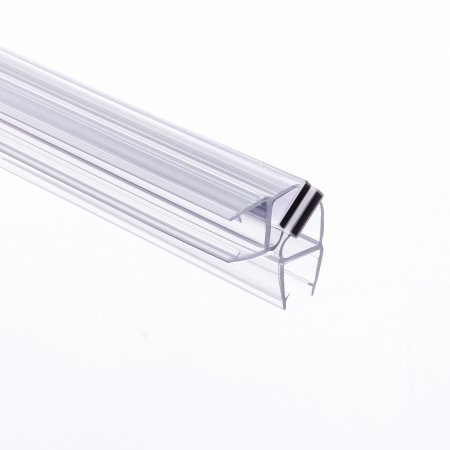

008AW6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	16	22
*6mm	13	15
8mm	18	25
*8mm	15	15
10mm	18	25
*10mm	16	20
12mm	17	26

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

008B6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	18	N
8mm	22	N
10mm	22	N
12mm	22	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

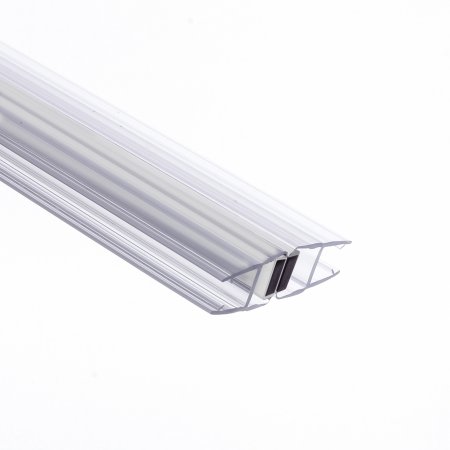

008BW6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	18	N
8mm	22	N
10mm	22	N
12mm	22	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

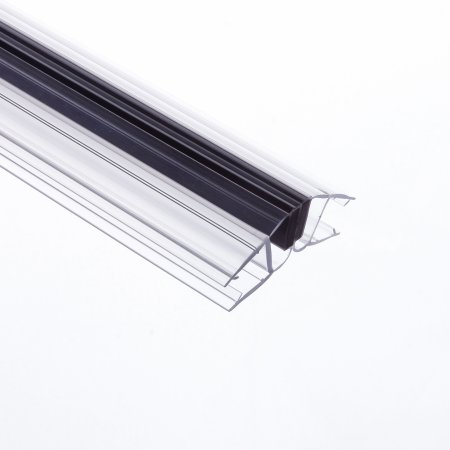

008C6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	18.5	11
8mm	20.5	12
10mm	23	13
12mm	23	11

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

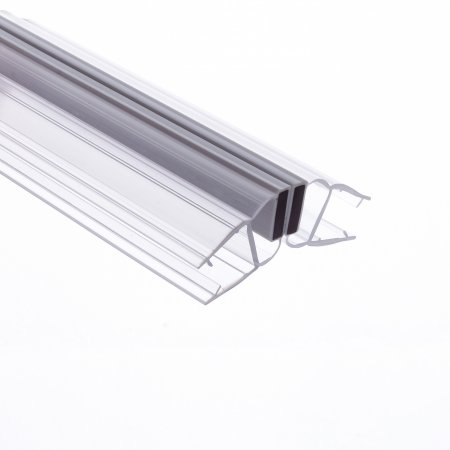

008CW6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	18.5	11
8mm	20.5	12
10mm	23	13
12mm	23	11

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

008C16, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	18	14
8mm	19	11
10mm	22	11
12mm	23	12

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

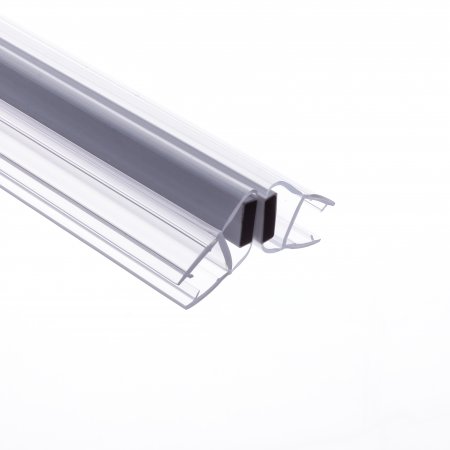

008C1W6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	18	14
8mm	19	11
10mm	22	11
12mm	23	12

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

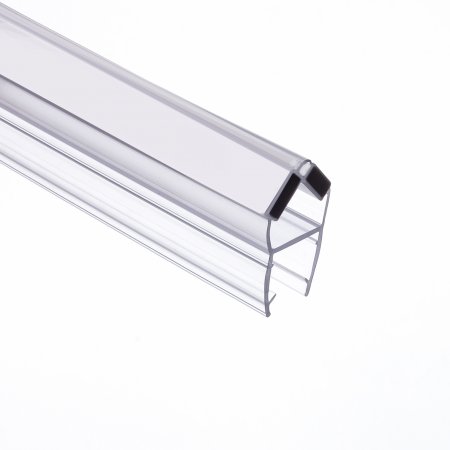

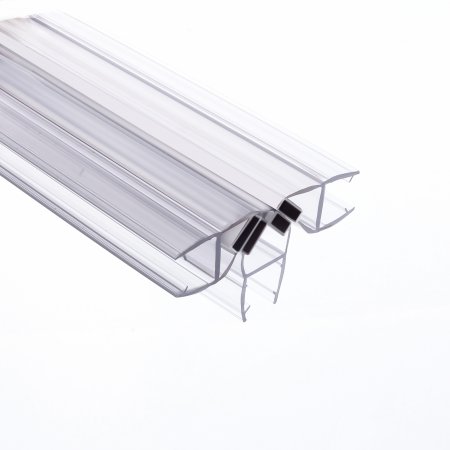

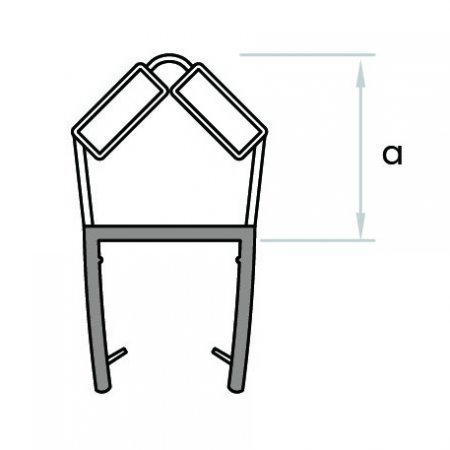

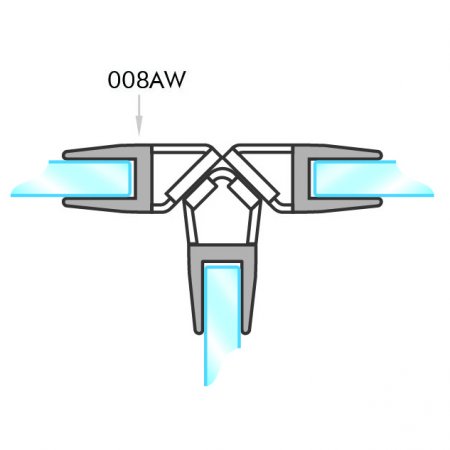

0084W10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
10mm	17	N
12mm	18	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

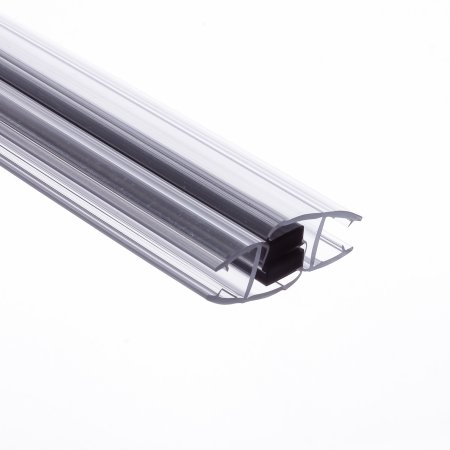

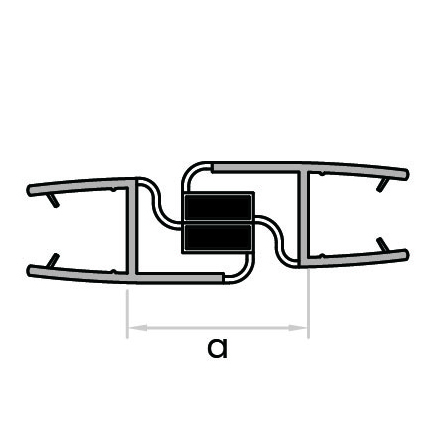

008E6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	20	N
8mm	20	N
10mm	23	N
12mm	23	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

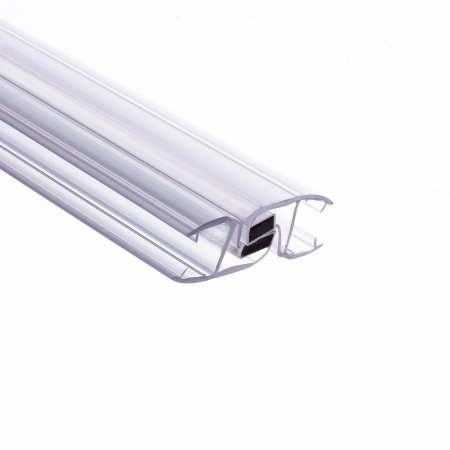

008EW6, 8, 10, 12 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	20	N
8mm	20	N
10mm	23	N
12mm	23	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

Adhesive Magnet Type ASee drawing

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
Type A	8	3.8

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

Adhesive Magnet Type BSee drawing

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
Type B	9.8	3.8

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

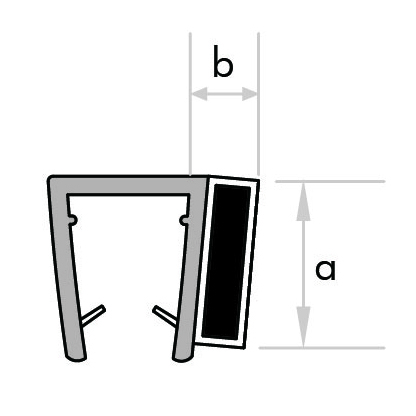

008F & 008FW6, 8, 10 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	10	5
8mm	10	5
10mm	10	5

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

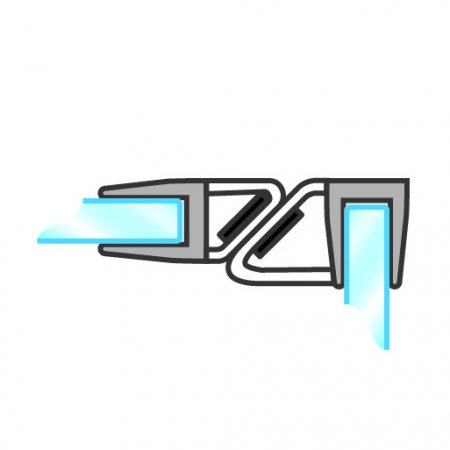

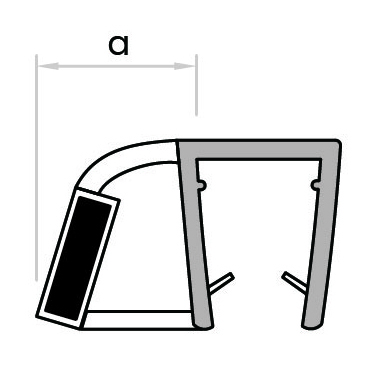

008F26, 8 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	12.5	N
8mm	12.5	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

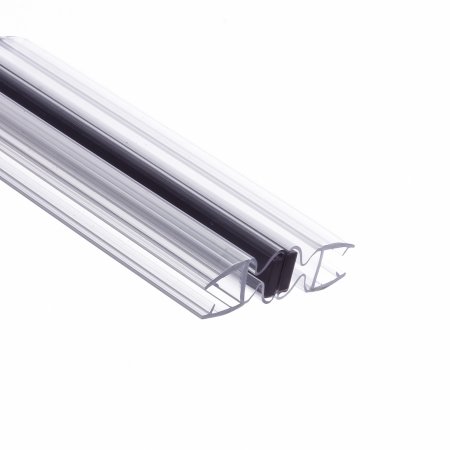

008G6, 8 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	23	N
8mm	23	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

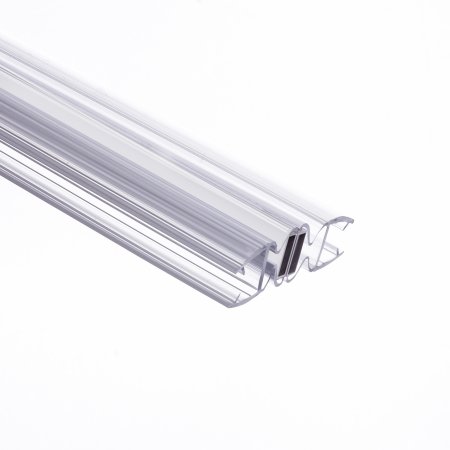

008GW6, 8 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
6mm	23	N
8mm	25	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

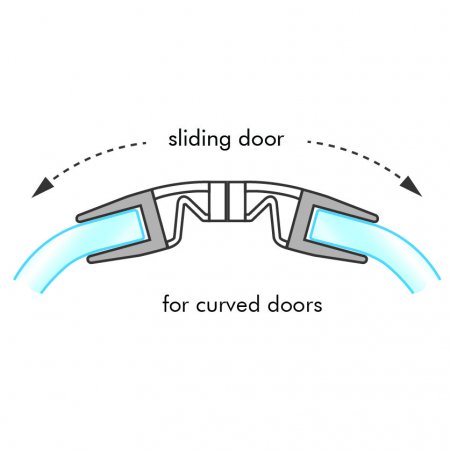

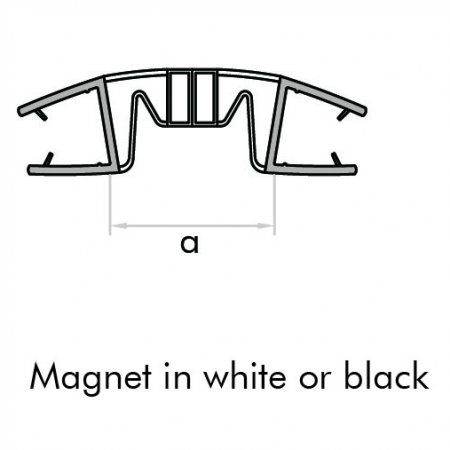

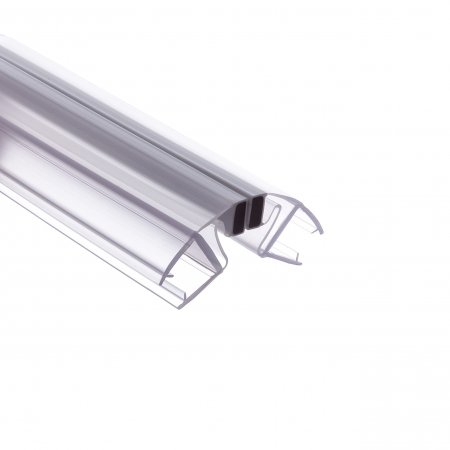

008G1W8, 10 mm glass

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
8mm	20	N
10mm	22	N

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

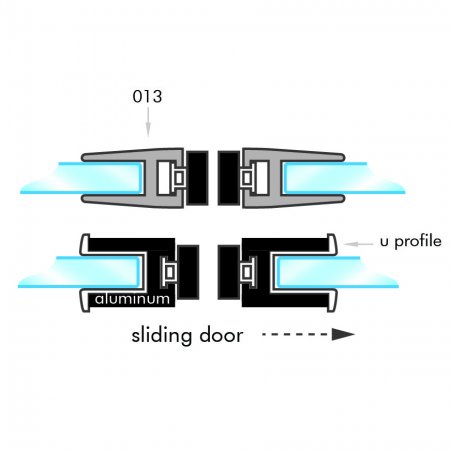

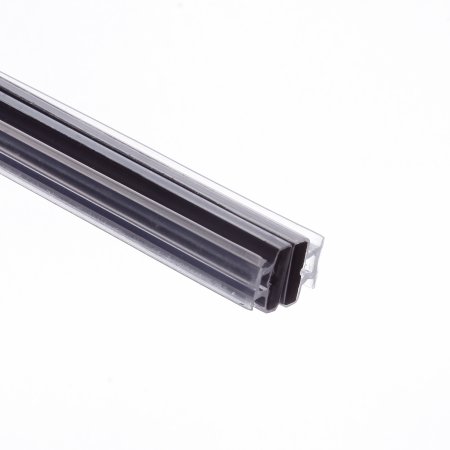

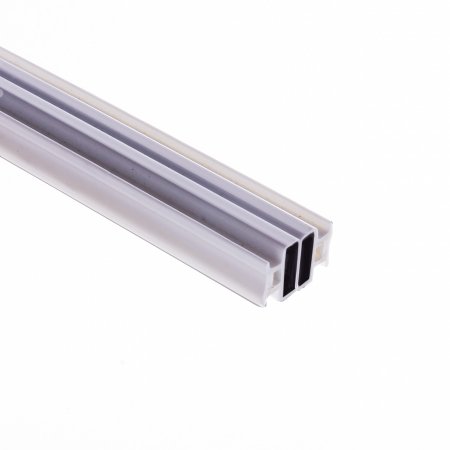

A-magnet01See drawing

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
Type A	7	9
Type B	8	9
Type C	9	9

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

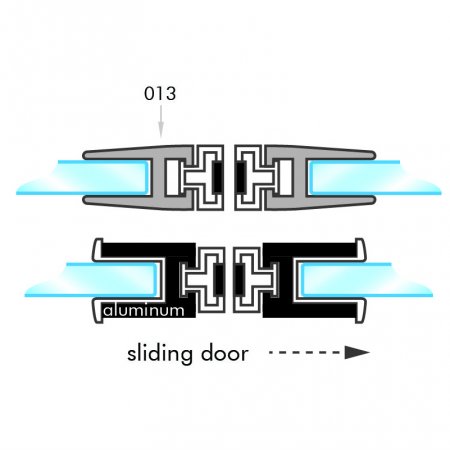

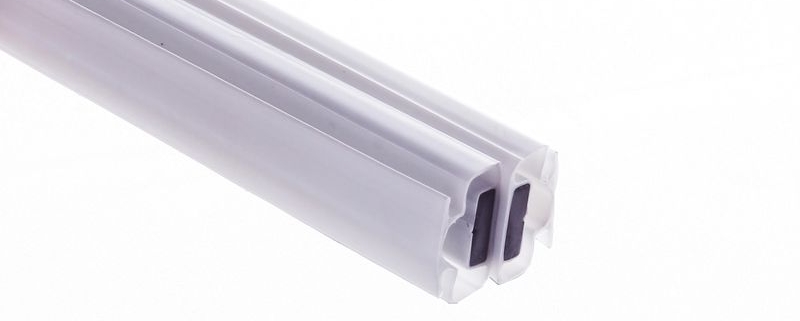

A-magnet02See drawing

Published dimensional reference; read with the corresponding drawing.
Glass	a	b
Type A	7	9
Type B	8	9
Type C	11	10

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

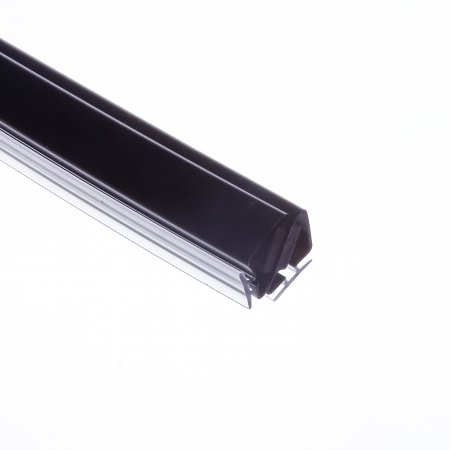

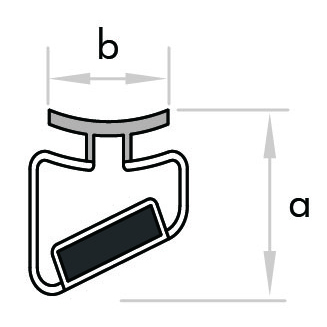

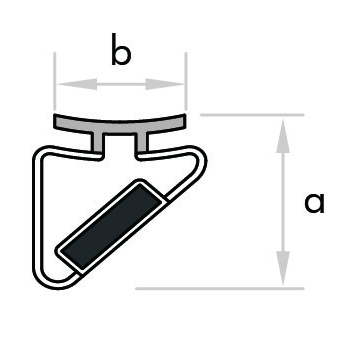

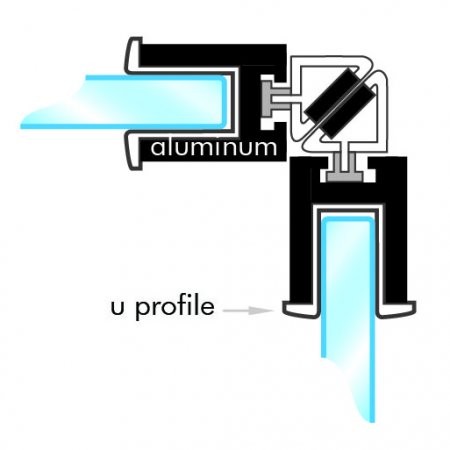

008N 90See drawing

Published dimensional reference; read with the corresponding drawing.
a	b
12.5	8

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

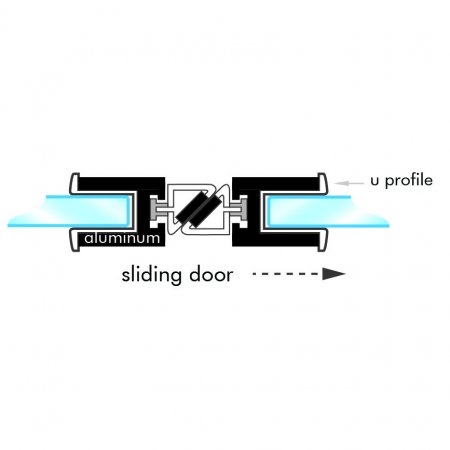

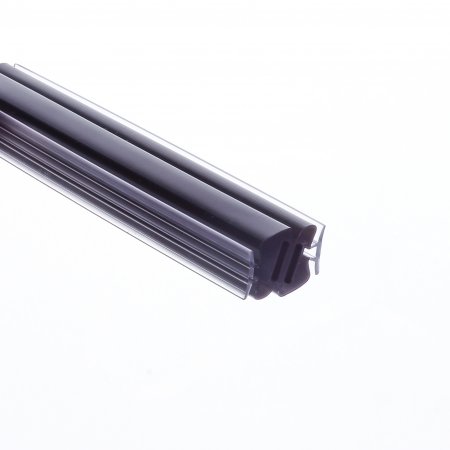

008N 180See drawing

Published dimensional reference; read with the corresponding drawing.
a	b
10.4	8

Read the dimensions with the drawing. Ask GoldRays to clarify any asterisk or “N” entry and confirm the complete pair before ordering.

Supply terms

Minimum order: 500 m per model as a guide; smaller runs are often possible
Lead time: 3 to 4 weeks for standard orders
Samples: free, cut lengths up to 1 m
Custom profiles: tooling typically USD 300 to 400, exclusive to you
Testing: SGS UV-ageing, mould and REACH SVHC results, see the test results
Contact: goldrays@showerdoorseal.org

Request a quote · Order free samples

Need help choosing or replacing a seal?

Which seal should I buy? · How to match a magnetic pair · Replacement sequence
