The shower room is a private space, so the shower seal for glass door must be good. For a good shower room, the water-resistant rubber strip is made of PVC silicone material. This material has good flexibility and aging resistance. It can be used for a long time and has good sealing properties to ensure that the shower room does not easy to leak water,Or the shower door is not tightly to be closed.
In this article, we’re going to introduce a several types of shower seals and their feature of shower room. Therefore, if maybe useful for your to choose the right one for your room.
2. Types of shower seals
The function of a shower seal is to prevent water leak but there are many places in a shower room where water leak happens. Among hundreds of various shapes of shower seals, below are 3 major types:

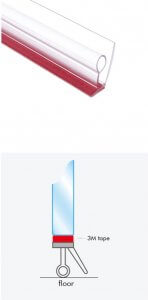

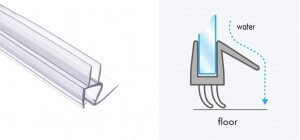

a、Bottom seals – working as a sweep at the bottom of a glass door to prevent water leaking out to the floor.

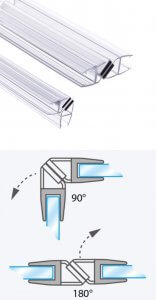

b、Seals between a door and a fixed glass panel.

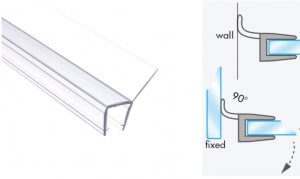

3、Seals work at the hinge side of a glass door
These 3 types are needed almost in every common shower rooms and that’s why they are the best sellers in Amazon and eBay.
Multiple functions of shower seal
In addition, the sealing rubber strip is made of PVC or EVA material, which has a hard texture without cracking, yellowing or moldiness, high permeability, easy cleaning, good sealing performance and longer service life. You can indulge in a passionate shower without worrying about overflowing. The wet and dry separation keeps the bathroom dry and avoids the danger of slipping. The rubber strip focuses on the waterproof function of the shower room! Many types of adhesive strips are suitable for various shower rooms of different models. Among them, the one-piece, squeeze, and reflow adhesive strips represent the high-level sealing performance of the shower room industry. Effectively achieve the perfect sealing and waterproof of the shower room, tightly inlaid between the glass and the rubber strip, the profile and the rubber strip, both effective waterproof and effective protection of the glass.
The stone base is made of a mixture of pure quartz sand and high-quality gum, which has a hard texture and toughness. It adopts seamless splicing and is not easy to break. The structure density is high, there are no pinhole gaps, and the surface will not swell due to water absorption. The stone base does not absorb sewage and does not produce moldy smell. Generally, after the stone base absorbs water, it will release moldy smell during the drying process. It Is a good choice.
3、Custom shower seals
If you are in the retail business of shower accessories, you probably want to sell something that helps you stand out from the competition. Supplying some custom-made shower seals that suits your market is one of the good ideas. If you could do a research you would find the unique need of your local market. For example in many small apartments, curved shower are pretty common so as to maximize the space. However most shower seals are straight and do not fit a curved door. People are desperate to find a curved seal when they need to replace the old one. Another example is that if you are in a market where customers hate doing handy job, you may want to supply something very easy to install, which doesn’t require a tool and following a long step on the manual, for instance a shower seal with a glue tape.
4、Correct installation method

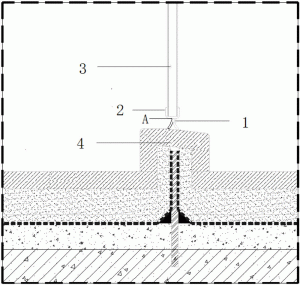

About the installation structure of the shower door sealing strip and the manufacturing method of the shower door Background: As shown in FIG. 1, conventional shower room sealing strips are currently provided in a “丩” shape on one side of the shower door in the thickness direction. The bottom edge of the shower room door 33 extends to the stone water stop 22.
When the shower room door opens and closes, the sealing strip moves against the ground to prevent water from flowing out of the shower room. In the prior art, the length of the sealing strip is larger than the size of the gap. Most of these sealing strips are made of PVC. Because of the rigid nature of the material, the movement in the direction indicated by arrow X in FIG. 1 can be performed. In the opposite direction, the sealing strip 11 will receive a large bending force at this time, which may easily cause deformation or damage to the sealing strip. Technical realization elements: Therefore, the utility model can solve the problem that the shower glass partition door can only be opened in one direction, and provides a mounting structure for a shower door seal that can realize two-way opening.
The utility model provides an installation structure for a shower room door sealing strip which can realize bidirectional opening. The shower room door includes a shower room door rotatably connected to a vertical wall, and a water barrier is provided below the shower room door. A sealing strip is connected to an end of the shower door close to the water stop, the flexible sealing strip is provided at a thickness center A of the shower door, and the flexible sealing strip can be opened in the shower door Or when the door is closed, a bending action away from the moving direction of the shower door occurs. Preferably, it further comprises: a cover, one side of which is covered on the shower door, and the other side is connected with the flexible sealing strip; preferably, the cover is fixed on the shower door by glue;
5、 Different materials make up different shower seals
Shower door seals include translucent PVC, magnetic strip and vinyl. Each type of door seal is designed between two pieces of glass or glass and other materials, which can be fixed or circulating. This seal prevents water from penetrating between the glass. It also creates a cushion so that the two pieces do not grind together. These seals can be used on any type of shower door and wall mechanism, whether it is a sliding door, to form a glass wall.
Some shower door seals are made of translucent PVC. This is a flexible plastic that can often be molded to fit straight chains or curved edges. Seals are usually designed to prevent water from coming out of the drip door.
Strips of this type can be found lined with fixed glass plates that come in contact with other materials, such as tiled showers or ceramic bathtubs. It uses this slightly invisible sealant for shower doors, often called frameless. Because the glass looks floating, there is no benefit to the metal frame.
Glass shower doors usually use shower magnetic door seals.
Translucent PVC is a magnetic strip used to encase. The PVC is designed to be pressed into glass, where two glass pieces will meet to form the edge of a watertight barrier. Once the two magnets are in contact, they lock the shower in place and the water keeps the shower inside. The only side profile of the two magnets is visible through the transparent plastic, making this type of component also commonly used in projects with frameless shower doors.
Vinyl shower door seals are used on those interior aluminum framed doors. This type of door is often in two fixed walls with different materials. A single piece of glass was mounted in an aluminum frame and waterproofed with vinyl-sealed tracks. The track is mounted inside the first aluminum frame and is generally clear in color. They also created a buffer barrier to prevent vibrations from being transmitted to the glass sheet.
Conclusion
In the entire shower room product, the role of the adhesive strip is obvious, not only in water resistance, but also plays an important role in the sliding experience. Most of the rubber strips used in shower rooms on the market are PVC waterproof strips. Plastic such as PVC is soft, easy to stretch, and relatively acid and alkali resistant. It can survive for a long time in a relatively humid environment such as bathroom space. , So deeply loved by manufacturers in the shower room industry.
We need to grasp the market of shower sealing strips, we need to fully understand the different types of shower seals and the glass sizes commonly used by customers in the market, and finally provide the easiest and safest installation method.
