Bifold Shower Door Seals Manufacturer and Supplier
GoldRays manufactures bifold shower door seals and supplies sealing profiles for B2B and OEM/ODM projects. The published models below provide profile images and dimensional references for folding shower enclosures, bath screens and related glass-panel systems.
A bifold seal must be reviewed as part of the complete folding arrangement. Provide the number of panels, fold sequence, seal position, glass thickness, hinge geometry and the gap or contact direction at the relevant edge. GoldRays can compare a cross-section drawing, physical sample or clear side-view photographs with an existing profile before a custom route is considered.
Information needed to select a bifold shower seal
| Buyer input | What to provide |
|---|---|
| Folding arrangement | Show the number of panels, hinge positions and the direction in which each panel folds. |
| Seal position | Identify the glass edge, meeting edge, bottom edge or other mounting position. |
| Glass thickness | Measure the glass that receives the profile rather than estimating from the enclosure. |
| Gap and contact direction | Record the distance to the adjacent panel or surface and show how the profile should meet it. |
| Existing profile | Send a cut sample, cross-section drawing or clear side-view photographs with measurements. |
| Project requirements | Include required length, expected quantity, destination market and any packaging or documentation needs. |
The model tables are published references and should be reviewed with their corresponding images. A similar dimension alone does not confirm compatibility; the complete section, mounting position and folding movement must also be checked.
Models

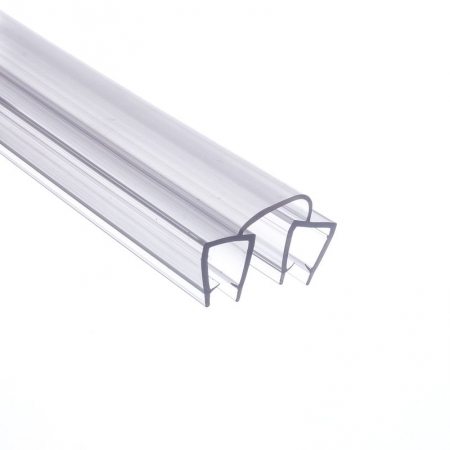

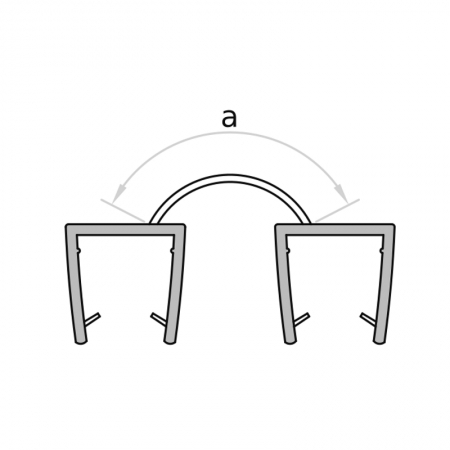

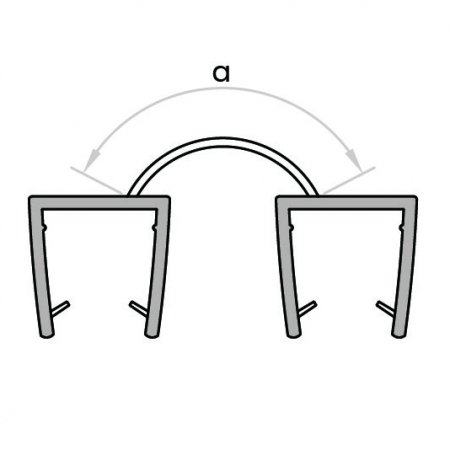

| Glass | a | b |
|---|---|---|
| 6mm | 20 | N |
| 8mm | 20 | N |
| 10mm | 20 | N |

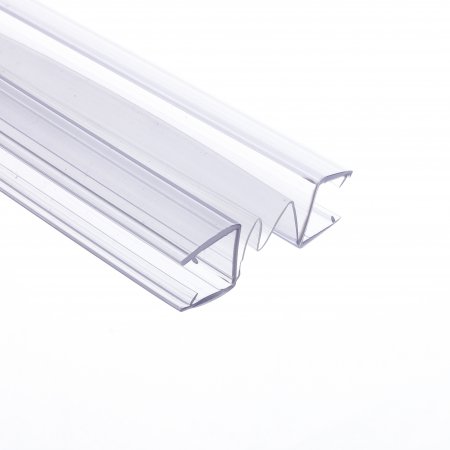

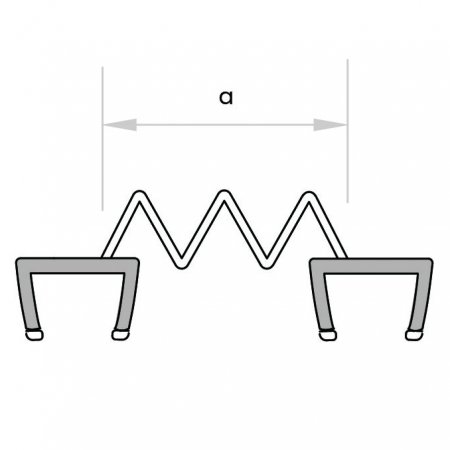

| Glass | a | b |
|---|---|---|
| 6mm | 40 | N |
| 8mm | 40 | N |
| 10mm | 40 | N |

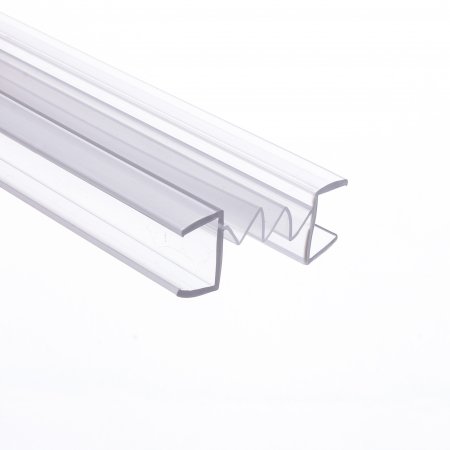

| Glass | a | b |
|---|---|---|
| 10mm | 40 | N |
| Glass | a | b |
|---|---|---|
| 10mm | 40 | N |
How bifold shower door profiles are reviewed

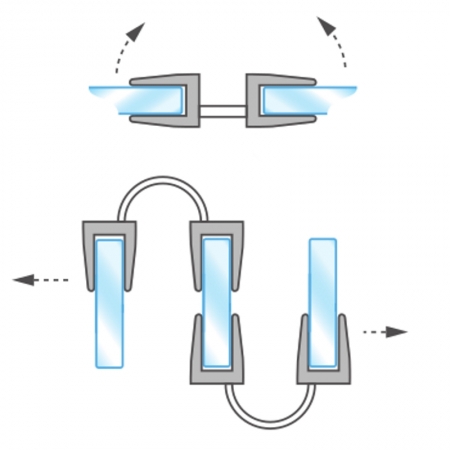

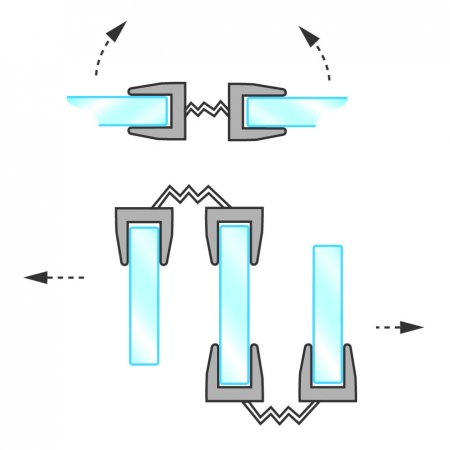

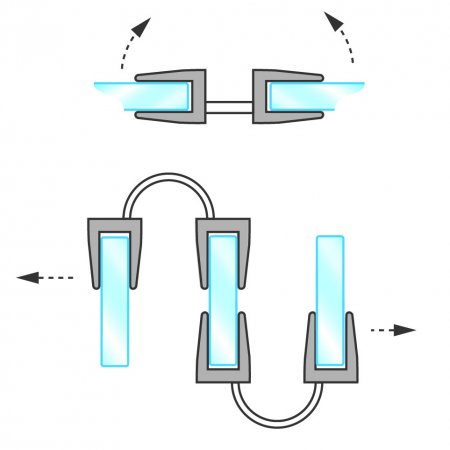

Panel sequence and folding movement
Bifold enclosures combine multiple moving panels, so the seal must be considered through the full opening and closing sequence. Show the door in both positions and identify the edge on which the profile is mounted. The profile channel and flexible section should be reviewed so they do not obstruct the intended movement.
Glass thickness and profile channel
The measured glass thickness is a primary selection input because the gripping channel must correspond to the glass edge. Use the table for the relevant model as a reference, then confirm the entire cross-section and application before ordering.
Gap, hinge geometry and contact direction
Measure the gap at the actual seal position and show the direction in which the profile should contact the adjacent panel or surface. Hinge location and folding direction can change the available space through the door movement, so photographs and a simple enclosure sketch are useful.
Existing model or custom profile
An established model may provide a suitable starting point when its section and dimensions correspond to the project. If the published range does not match the required geometry, GoldRays can review the enquiry through its custom shower door seal profile process using a drawing or physical sample.
Bifold seal enquiry workflow
- Application review: identify the panel sequence, hinge positions, seal location, glass thickness and gap.
- Profile comparison: compare the buyer’s drawing, sample or photographs with the published models.
- Specification clarification: confirm the section, dimensions, required length, quantity, market and packaging needs.
- Sample or specification confirmation: agree the profile information used for the supply review.
- Commercial review: confirm the B2B project details before production planning.
A bifold enclosure may use several profile functions. Review bottom shower door seals for the lower glass edge, magnetic shower door seals for compatible closing edges, sliding shower door seals for sliding-panel projects, and the standard shower seal range for other door and panel arrangements.
Frequently asked questions
Does GoldRays manufacture bifold shower door seals?
Yes. GoldRays manufactures and supplies bifold shower door seal profiles for B2B buyers. The models on this page provide images and dimensional references for profile comparison.
How do I choose a bifold shower door seal?
Provide the folding arrangement, hinge positions, seal location, glass thickness, gap, contact direction and a profile cross-section or clear photographs. Review the complete geometry rather than one measurement alone.
Can I select a bifold seal using glass thickness only?
No. Glass thickness is necessary, but the channel shape, flexible section, mounting edge, hinge geometry and panel movement also affect suitability.
Can GoldRays compare an existing bifold seal sample?
GoldRays can review a cut sample, cross-section drawing or clear side-view photographs against existing profiles. Include measurements and photographs of the installed position.
Are bifold seals the same as bottom or magnetic seals?
They describe different profile functions, although one enclosure may use more than one category. Each mounting position should be reviewed separately, including how the profiles interact while the panels fold and close.
Can GoldRays review a custom bifold profile?
A custom route can be discussed when an existing model does not match the required section. Send the drawing or sample, application details and expected project requirements for evaluation.
What should I send for a quotation?
Email goldrays@showerdoorseal.org with the model or profile drawing, glass thickness, gap, fold sequence, hinge positions, required length, expected quantity and destination market.
Request a bifold shower seal review
Compare the published models and send the available measurements, drawings or sample photographs to goldrays@showerdoorseal.org. GoldRays will review whether an existing profile can be evaluated for the application or whether a custom discussion is more appropriate.
