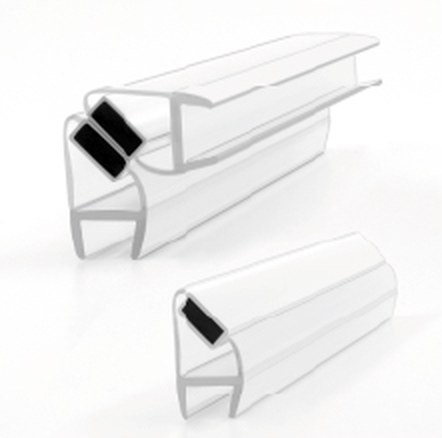

008A1 / 008A1W Compact Magnetic Shower Door Seal for 6–10 mm Glass

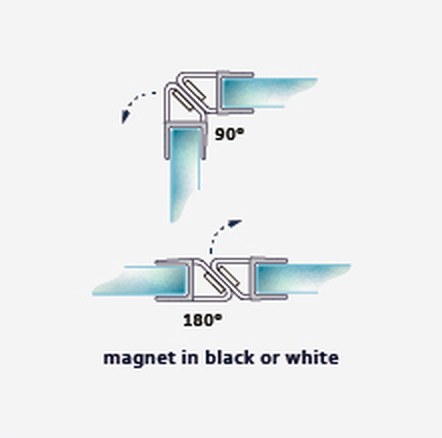

008A1 / 008A1W Compact is a PVC magnetic seal that closes a glass shower door against a panel or a second door, made for 6, 8 and 10 mm glass. Closing angle: 90°, 180°. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.
The magnet strip comes in black or white.
008A1 / 008A1W Compact sizes
| Glass thickness | A (mm) | B (mm) |
|---|---|---|
| 6 mm (1/4") | 14 | 18 |
| 8 mm (5/16") | 13 | 16 |
| 8 mm (5/16") | 16 | 20 |
| 10 mm (3/8") | 16 | 16 |
Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order 008A1 / 008A1W Compact
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for 008A1 / 008A1W Compact Ask for a free sample
Similar magnetic seals
008B, 008BW, 008C, 008CW, 008N 90, 008N 180, PO Magnet, 008C1. All models of this type: Magnetic seals. Every model: GoldRays seal models.
FAQ
What glass thickness does 008A1 / 008A1W Compact fit?
008A1 / 008A1W Compact is listed for 6, 8 and 10 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Which closing angle is 008A1 / 008A1W Compact for?
Magnetic seals are made for 90°, 135° and 180° closing and for sliding and curved doors. It is drawn for a 90°, 180° closing angle. Tell us the angle between the door and the panel when closed.
Can I get 008A1 / 008A1W Compact in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for 008A1 / 008A1W Compact, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
