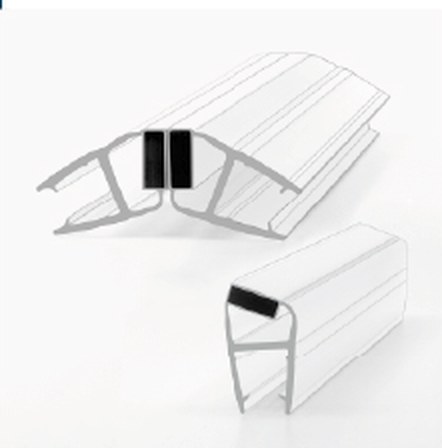

008CW Magnetic Shower Door Seal for 6–12 mm Glass
008CW is a PVC magnetic seal that closes a glass shower door against a panel or a second door, made for 6, 8, 10 and 12 mm glass. Closing angle: 135°. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.
008CW sizes
| Glass thickness | A (mm) | B (mm) |
|---|---|---|
| 6 mm (1/4") | 18.5 | 11 |
| 8 mm (5/16") | 20 | 12 |
| 10 mm (3/8") | 23 | 13 |
| 12 mm (1/2") | 23 | 13 |
Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order 008CW
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for 008CW Ask for a free sample
Similar magnetic seals
008B, 008BW, 008C, 008N 90, 008N 180, PO Magnet, 008C1, 008C1W. All models of this type: Magnetic seals. Every model: GoldRays seal models.
FAQ
What glass thickness does 008CW fit?
008CW is listed for 6, 8, 10 and 12 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Which closing angle is 008CW for?
Magnetic seals are made for 90°, 135° and 180° closing and for sliding and curved doors. It is drawn for a 135° closing angle. Tell us the angle between the door and the panel when closed.
Can I get 008CW in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for 008CW, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
