011C Hinged Shower Door Seal for 8–10 mm Glass

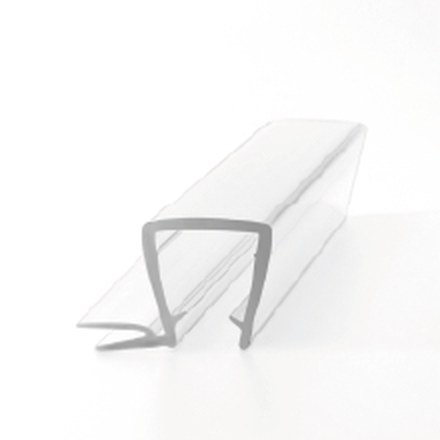

011C is a side seal for hinged and swinging frameless glass shower doors, made for 8 and 10 mm glass. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.
011C sizes
| Glass thickness | A (mm) | B (mm) |
|---|---|---|
| 8 mm (5/16") | 8 | 8 |
| 10 mm (3/8") | 10 | 8 |

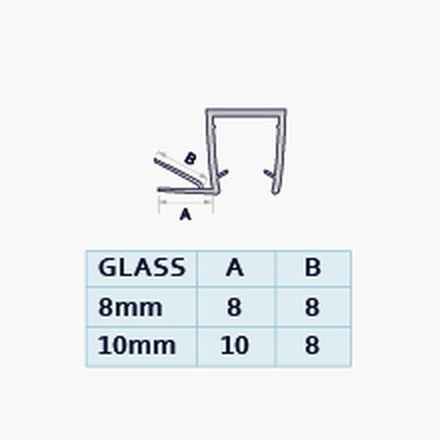

Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order 011C
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for 011C Ask for a free sample
Similar hinged and swinging door seals
003i, 003A2, 003A, 003B, 003C, 005A, 011A, 007B. All models of this type: Swinging door seals. Every model: GoldRays seal models.
FAQ
What glass thickness does 011C fit?
011C is listed for 8 and 10 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Can I get 011C in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for 011C, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
