027A Shower Door Bottom Seal for 6–10 mm Glass

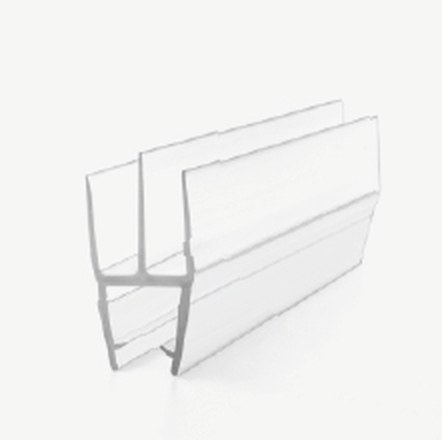

027A is a straight bottom seal for the lower edge of a glass shower door or screen, made for 6, 8 and 10 mm glass. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

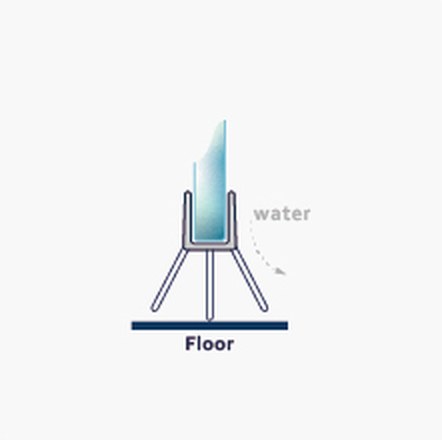

It is fitted at the floor, on the lower edge of the glass.
027A sizes
| Glass thickness | A (mm) | B (mm) |
|---|---|---|
| 6 mm (1/4") | 15 | 6 |
| 8 mm (5/16") | 15 | 12 |
| 10 mm (3/8") | 15 | 13 |
Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order 027A
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for 027A Ask for a free sample
Similar bottom seals
009B, 009B1, 009B1 MM, 007G, 009C, 009D, 009D1, 009D5. All models of this type: Bottom seals. Every model: GoldRays seal models.
FAQ
What glass thickness does 027A fit?
027A is listed for 6, 8 and 10 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Can 027A be made curved for a quadrant or curved screen?
Most GoldRays bottom seals can be made pre-curved to the radius of your glass. Send the radius, or the length and depth of the curve.
Can I get 027A in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for 027A, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
