A-Magnet02 Magnetic Shower Door Seal

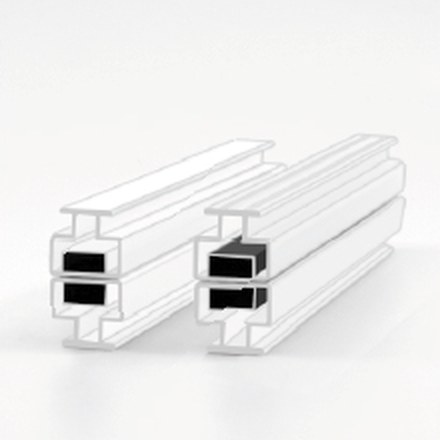

A-Magnet02 is a PVC magnetic seal that closes a glass shower door against a panel or a second door. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

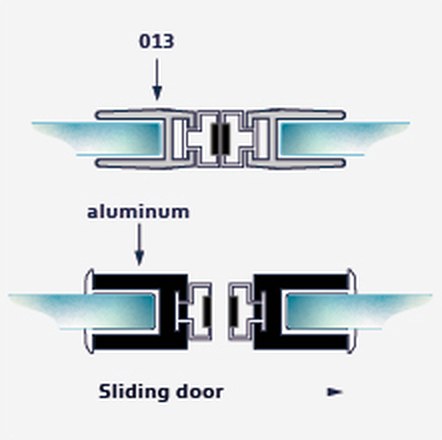

The fitting diagram shows it on a sliding door. The fitting diagram shows it with an aluminium profile.
A-Magnet02 sizes
| Version | A (mm) | B (mm) |
|---|---|---|
| Type A | 7 | 9 |
| Type B | 8 | 9 |
| Type C | 11 | 10 |

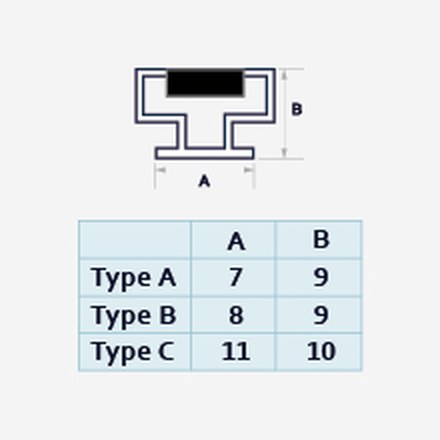

Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order A-Magnet02
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for A-Magnet02 Ask for a free sample
Similar magnetic seals
008B, 008BW, 008C, 008CW, 008N 90, 008N 180, PO Magnet, 008C1. All models of this type: Magnetic seals. Every model: GoldRays seal models.
FAQ
Which closing angle is A-Magnet02 for?
Magnetic seals are made for 90°, 135° and 180° closing and for sliding and curved doors. Tell us the angle between the door and the panel when closed.
Can I get A-Magnet02 in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for A-Magnet02, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
