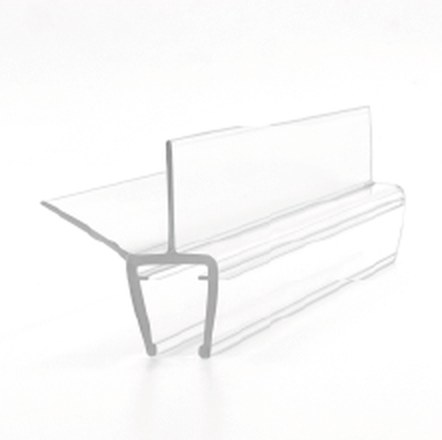

Dual S009A2 Dual-Fit Shower Seal for 6–8 mm Glass
Dual S009A2 is a dual seal: one profile that fits two glass thicknesses, so you stock fewer parts, made for 6-8 mm glass. Material: SuperClear polycarbonate. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

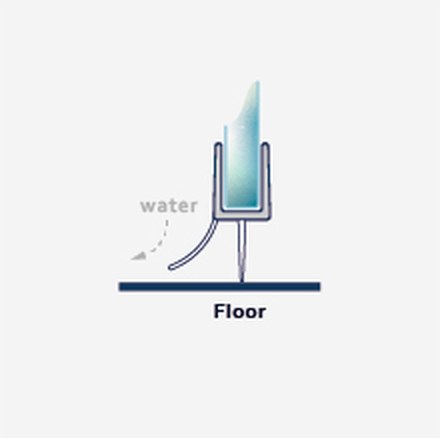

It is fitted at the floor, on the lower edge of the glass.
Dual S009A2 sizes
| Glass thickness | A (mm) | B (mm) |
|---|---|---|
| 6-8 mm | 13 | 16 |
Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order Dual S009A2
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for Dual S009A2 Ask for a free sample
Similar dual seals
Dual 003i, Dual 003B, Dual 005i, Dual 005iL, Dual 003G-Compact, Dual 008A1W-90, Dual 008A1W-180, Dual 008BW. All models of this type: All seal models. Every model: GoldRays seal models.
FAQ
What glass thickness does Dual S009A2 fit?
Dual S009A2 is listed for 6-8 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Will Dual S009A2 turn yellow?
SuperClear polycarbonate was tested by SGS to ASTM G155 Cycle 6 for 300 hours of xenon-arc exposure: the tested specimens showed no yellowing, cracking or powdering. See the test results. Results apply to the samples tested.
Can I get Dual S009A2 in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for Dual S009A2, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
About the author
GoldRays technical team
The GoldRays technical team writes these guides at the GoldRays factory in Foshan, China, where clear PVC and polycarbonate shower door seals have been made since 2001. The team works with more than 40 production lines and more than 3,200 moulds for 4 to 15 mm glass, and answers trade questions about fit, materials and testing.
