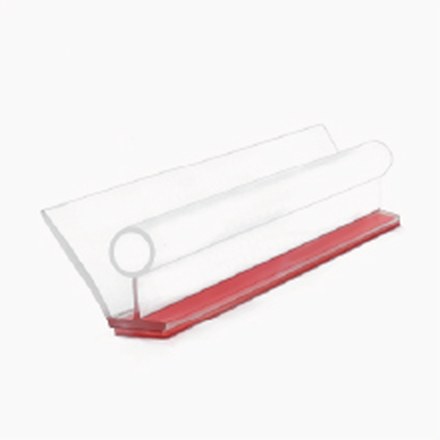

F221 Self-Adhesive Shower Seal for 8–10 mm Glass
F221 is a self-adhesive seal with 3M VHB tape already applied, fitted with no glue and no clips, made for 8-10 mm glass. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

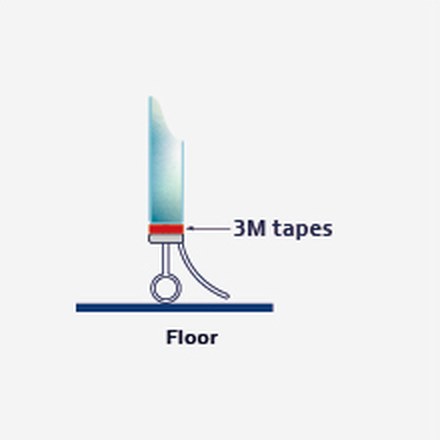

It is fitted at the floor, on the lower edge of the glass. It is fixed with 3M tape.
F221 sizes
| Glass thickness | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| 8-10 mm | 7 | 12 | 13 |

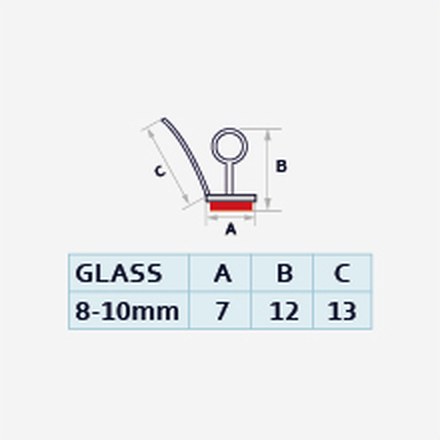

Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order F221
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for F221 Ask for a free sample
Similar adhesive seals
F223 / F223A / F227, F294-L / F294-S, F196, F224, F225, F295, F228A, F333. All models of this type: Adhesive seals. Every model: GoldRays seal models.
FAQ
What glass thickness does F221 fit?
F221 is listed for 8-10 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Do I need glue to fit F221?
No. GoldRays adhesive seals come with 3M VHB tape already applied: peel the liner and press the seal onto clean, dry glass.
Can I get F221 in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for F221, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
