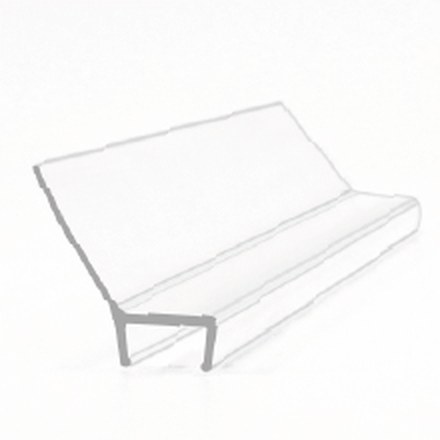

GS005 Compact Shower Seal for 8–10 mm Glass
GS005 is a compact seal with a smaller profile, so more of the glass edge stays visible, made for 8 and 10 mm glass. Material: SuperClear polycarbonate. Closing angle: 90°. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

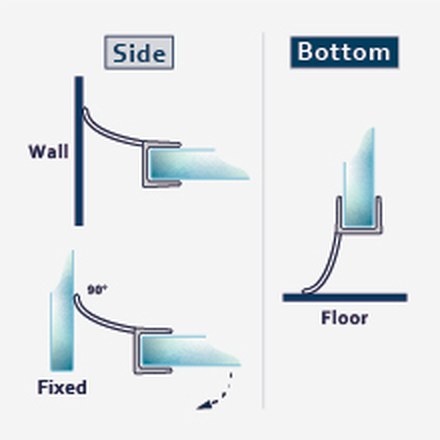

The catalogue shows it fitted both ways: as a side seal against a wall or panel, and as a bottom seal on the floor.
GS005 sizes
| Glass thickness | A (mm) |
|---|---|
| 8 mm (5/16") | 16 |
| 10 mm (3/8") | 16 |

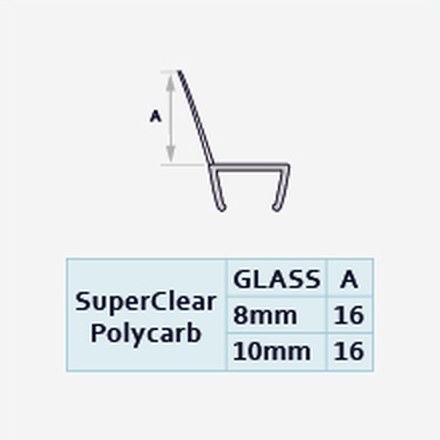

Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order GS005
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for GS005 Ask for a free sample
Similar compact seals
GS007, 007 Compact, 003G Compact, GS009, GS009A2, GS008A1 / GS008A1W, 008A1 Compact / 008A1W Compact, GS008C1 / GS008C1W. All models of this type: Compact seals. Every model: GoldRays seal models.
FAQ
What glass thickness does GS005 fit?
GS005 is listed for 8 and 10 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Will GS005 turn yellow?
SuperClear polycarbonate was tested by SGS to ASTM G155 Cycle 6 for 300 hours of xenon-arc exposure: the tested specimens showed no yellowing, cracking or powdering. See the test results. Results apply to the samples tested.
Can I get GS005 in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for GS005, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
