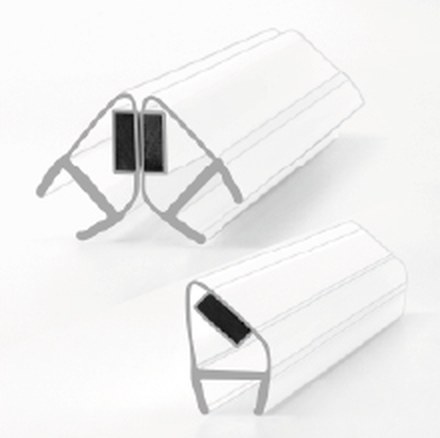

GS008C1 / GS008C1W Compact Shower Seal for 8–10 mm Glass
GS008C1 / GS008C1W is a compact seal with a smaller profile, so more of the glass edge stays visible, made for 8 and 10 mm glass. Material: SuperClear polycarbonate. Closing angle: 135°. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

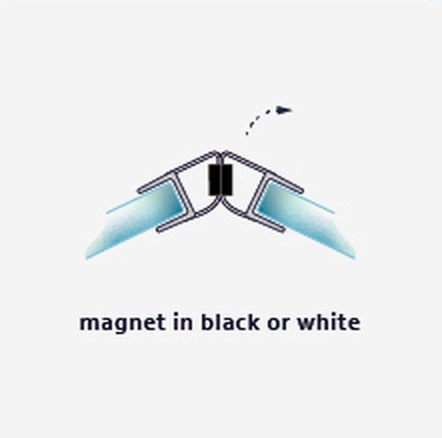

The magnet strip comes in black or white.
GS008C1 / GS008C1W sizes
| Glass thickness | A (mm) | B (mm) |
|---|---|---|
| 8 mm (5/16") | 18 | 11 |
| 10 mm (3/8") | 18 | 11 |

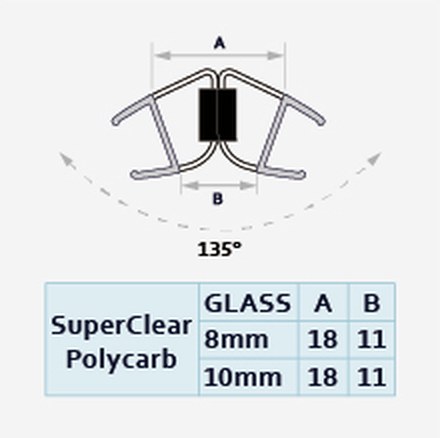

Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order GS008C1 / GS008C1W
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for GS008C1 / GS008C1W Ask for a free sample
Similar compact seals
GS007, 007 Compact, 003G Compact, GS009, GS009A2, GS008A1 / GS008A1W, 008A1 Compact / 008A1W Compact, 008C1 Compact / 008C1W Compact. All models of this type: Compact seals. Every model: GoldRays seal models.
FAQ
What glass thickness does GS008C1 / GS008C1W fit?
GS008C1 / GS008C1W is listed for 8 and 10 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Will GS008C1 / GS008C1W turn yellow?
SuperClear polycarbonate was tested by SGS to ASTM G155 Cycle 6 for 300 hours of xenon-arc exposure: the tested specimens showed no yellowing, cracking or powdering. See the test results. Results apply to the samples tested.
Can I get GS008C1 / GS008C1W in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for GS008C1 / GS008C1W, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
About the author
GoldRays technical team
The GoldRays technical team writes these guides at the GoldRays factory in Foshan, China, where clear PVC and polycarbonate shower door seals have been made since 2001. The team works with more than 40 production lines and more than 3,200 moulds for 4 to 15 mm glass, and answers trade questions about fit, materials and testing.
