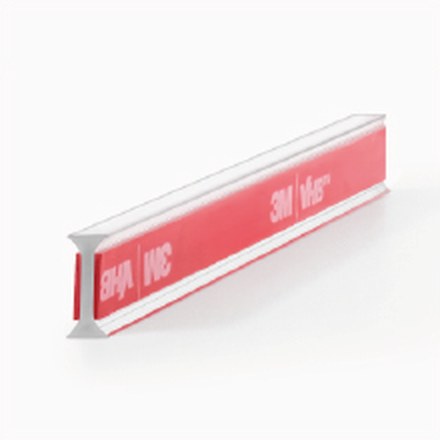

IS-180 Fixed Panel Shower Seal for 6–14 mm Glass
IS-180 is a seal for fixed glass panels, joining panel to panel or panel to wall, made for 6, 8, 10, 12, 12.5, 13.5 and 14 mm glass. Closing angle: 180°. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

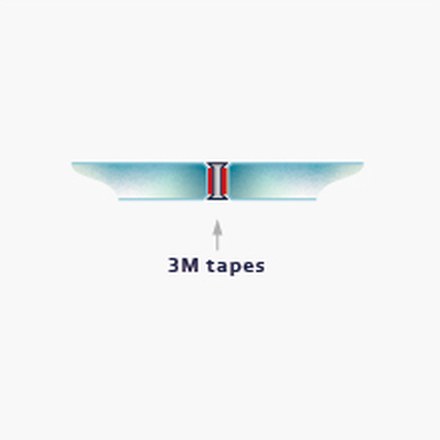

It is fixed with 3M tape.
IS-180 sizes
| Glass thickness | A (mm) | B (mm) |
|---|---|---|
| 6 mm (1/4") | 6 | 4.6 |
| 8 mm (5/16") | 8 | 4.8 |
| 10 mm (3/8") | 10 | 5 |
| 12 mm (1/2") | 12 | 4.8 |
| 12.5 mm | 12.5 | 5.5 |
| 13.5 mm | 13.5 | 6 |
| 14 mm | 14 | 4.8 |
Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order IS-180
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for IS-180 Ask for a free sample
Similar fixed panel seals
HS-180 / HH-180, IS-90, TS-90, TJ-90, 010A, 026, 026-112°, 029. All models of this type: Glass connectors. Every model: GoldRays seal models.
FAQ
What glass thickness does IS-180 fit?
IS-180 is listed for 6, 8, 10, 12, 12.5, 13.5 and 14 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Can I get IS-180 in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for IS-180, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
