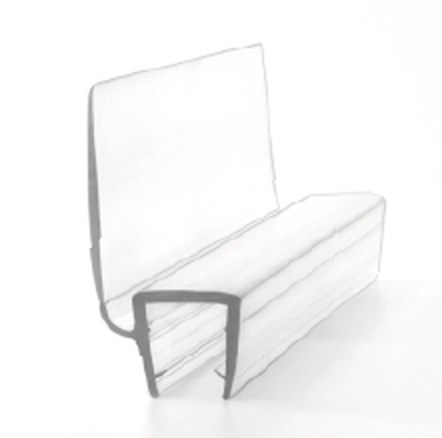

002 Universal Shower Seal for 6–10 mm Glass
002 is a universal seal that can be fitted on the side or the bottom of the glass, made for 6, 8 and 10 mm glass. Closing angle: 90°, 135°. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

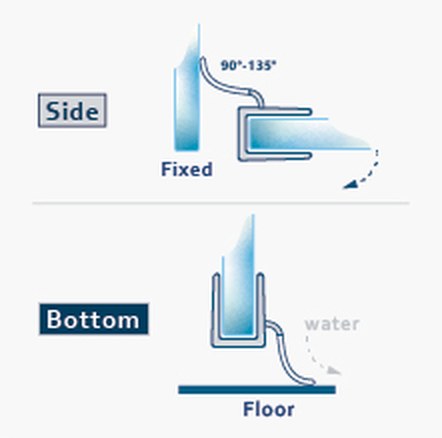

The catalogue shows it fitted both ways: as a side seal against a wall or panel, and as a bottom seal on the floor.
002 sizes
| Glass thickness | A (mm) |
|---|---|
| 6 mm (1/4") | 20 or 25 |
| 8 mm (5/16") | 27 |
| 10 mm (3/8") | 32 |
Dimensions in mm, as marked A, B and C on the profile drawing. Source: GoldRays catalogue 2026/27.
How to order 002
Send the glass thickness, the gap to close, the door type and the length you need. A photo of an old seal’s end, or a 10 cm piece, is the fastest way to confirm the match.
- Minimum order: about 500 m per model as a guide; smaller runs are often possible
- Lead time: 3–4 weeks for standard orders
- Samples: free
- Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
- Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
- Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)
Request a quote for 002 Ask for a free sample
Similar universal seals
003, 003A1, 003D, 001, 019, 019B, 027D, 005C. All models of this type: Versatile door seals. Every model: GoldRays seal models.
FAQ
What glass thickness does 002 fit?
002 is listed for 6, 8 and 10 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.
Can 002 be made curved for a quadrant or curved screen?
Most GoldRays bottom seals can be made pre-curved to the radius of your glass. Send the radius, or the length and depth of the curve.
Can I get 002 in black or another colour?
Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.
What is the minimum order for 002, and can I get a sample?
The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
About the author
GoldRays technical team
The GoldRays technical team writes these guides at the GoldRays factory in Foshan, China, where clear PVC and polycarbonate shower door seals have been made since 2001. The team works with more than 40 production lines and more than 3,200 moulds for 4 to 15 mm glass, and answers trade questions about fit, materials and testing.
