S001 SuperClear Polycarbonate Shower Seal for 8–12 mm Glass

S001 is a SuperClear seal made of polycarbonate, GoldRays’ clearest material, made for 8, 10 and 12 mm glass. It is made by GoldRays, a shower-seal factory in Foshan, China, since 2001.

The catalogue shows it fitted both ways: as a side seal against a wall or panel, and as a bottom seal on the floor.

S001 superclear polycarbonate shower seal, product photo

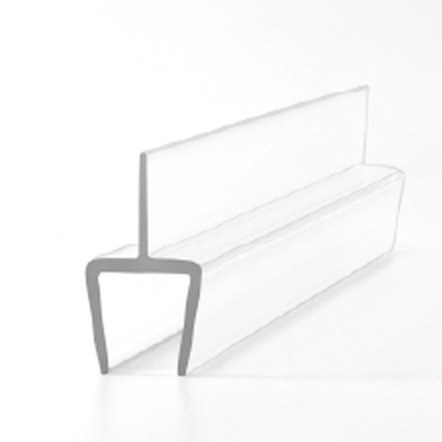

Product photo
S001 fitting diagram: where the seal sits on the glass

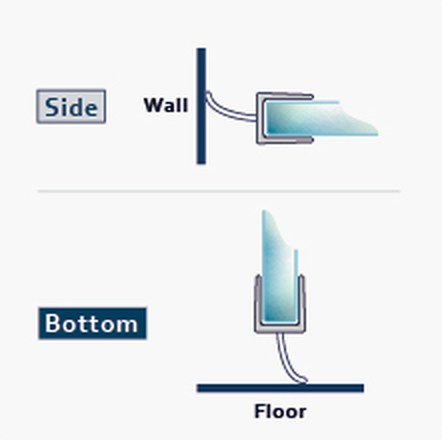

Fitting diagram
S001 profile drawing with dimensions

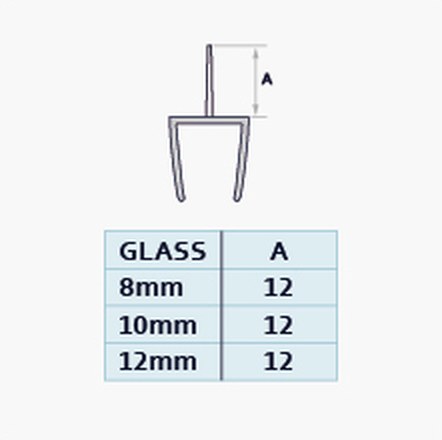

Profile drawing

S001 sizes

Glass thickness A (mm)
8 mm (5/16") 12
10 mm (3/8") 12
12 mm (1/2") 12

Profile dimension A is shown in mm. Confirm the working gap and door clearance separately against the profile and a sample. Source: GoldRays catalogue 2026/27.

How to order S001

For an S001 quotation, send the glass thickness, side or bottom position, gap measurements, door movement, required length and estimated quantity. An end-on photo or dimensioned drawing of the existing seal helps us check the profile. Confirm the opening clearance and sample fit before a bulk order.

  • Minimum order: about 500 m per model as a guide; smaller runs are often possible
  • Lead time: 3–4 weeks for standard orders
  • Samples: free
  • Finishes: clear as standard; black, chrome-look, smooth or matte, or a custom colour matched to your sample
  • Packing: plastic sleeve, plastic tube, cardboard tube or your own printed carton; cartons on a pallet or in a wooden crate
  • Custom versions: your logo on the seal, or a new profile from your drawing or sample (new tooling about USD 300–400)

Request a quote for S001 Ask for a free sample

Similar SuperClear seals

S007G, S009, S009A1, S009A2, S009B1, S008A1, S008A1W, S008B. All models of this type: SuperClear seals. Every model: GoldRays seal models.

FAQ

What glass thickness does S001 fit?

S001 is listed for 8, 10 and 12 mm glass. The table above gives the profile size for each thickness. For other thicknesses, send us the glass size and a photo of the edge.

Will S001 turn yellow?

SGS report GZIN2605002034PL01_EN records no visible yellowing, cracking or powdering in three test specimens cut from the submitted sample described as ‘A-Plastic part’, after 300 hours of ASTM G155-25 Cycle 6 exposure. Applying this result to S001 requires confirmation of the sample-to-model or material match. Ask for the relevant report and a sample of the current S001 version for your project. Review the test method and sample scope.

Can I get S001 in black or another colour?

Seals come clear as standard. Black, chrome-look, smooth or matte finishes are available, and we can match a custom colour from your sample.

What is the minimum order for S001, and can I get a sample?

The minimum order is about 500 m per model as a guide, and smaller runs are often possible. Standard orders ship in 3–4 weeks. Free samples are available: email goldrays@showerdoorseal.org.
