Self-Adhesive Shower Door Seals
GoldRays manufactures adhesive-mounted shower door seal profiles and supplies published models for B2B and OEM/ODM projects. The verified models below provide profile images and dimensional references for glass-edge and adjacent-surface applications in shower enclosures, bath screens and related panel systems.
An adhesive-mounted profile must be reviewed for both its cross-section and installation surface. Provide the profile position, glass or substrate details, gap, contact direction and the required mounting arrangement. GoldRays can compare a drawing, physical sample or clear side-view photographs with an existing model before a custom route is considered.
Information needed to select an adhesive shower door seal
| Buyer input | What to provide |
|---|---|
| Required function | Identify the edge and the gap, contact or separation function the profile should address. |
| Mounting surface | Describe whether the profile attaches to glass or another substrate and show the available bonding area. |
| Door or panel movement | Show whether the relevant part is fixed, swinging, sliding or folding. |
| Gap and contact direction | Measure the distance at the installed position and show the direction of contact. |
| Existing profile | Send a cut sample, cross-section drawing or clear side-view photographs with measurements. |
| Project requirements | Include required length, expected quantity, destination market and packaging or documentation needs. |
The published model tables should be reviewed with their corresponding images. Similar dimensions do not by themselves confirm compatibility; the complete profile section, mounting surface, intended function and panel movement must also be checked.
Models

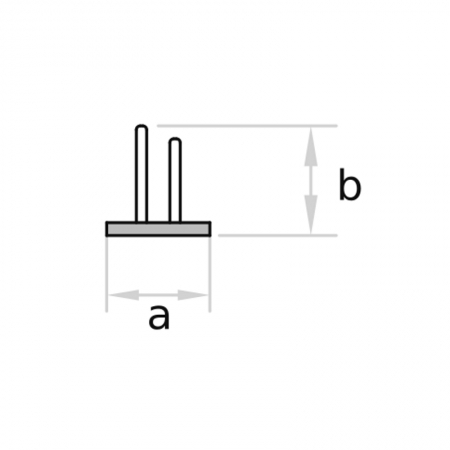

| Glass | a | b |
|---|---|---|
| 6mm | 8 | 4.8 |
| 8mm | 10 | 5 |
| 10mm | 12 | 4.8 |
| 12mm | 14 | 4.8 |
| Glass | a | b |
|---|---|---|
| 6mm | 8 | 7.5 |
How adhesive-mounted shower seal profiles are reviewed
Profile function and mounting position
Mark the exact installation position on an enclosure drawing and state the function required there. The model cross-section must be reviewed together with the surrounding glass, frame, wall or other adjacent surface.
Mounting surface and preparation requirements
Describe the substrate, available bonding area and environmental conditions for the project. Adhesive type, surface preparation and installation procedure should be confirmed for the specific application rather than assumed from the profile image.
Movement, gap and contact direction
Show whether the panel is fixed or moving and provide photographs in the relevant positions. Measure the gap at the actual mounting edge and show the direction in which the flexible section should contact the adjacent surface.
Established model or custom profile
An existing model may provide a suitable starting point when its section and dimensions correspond to the project. If the published range does not match the required geometry, GoldRays can review the enquiry through its custom shower door seal profile process using a drawing or physical sample.
Adhesive seal enquiry workflow
- Application review: identify the function, mounting position, substrate, movement and gap.
- Profile comparison: compare the buyer’s drawing, sample or photographs with the verified published models.
- Specification clarification: confirm the section, dimensions, length, expected quantity, market and packaging requirements.
- Mounting review: confirm the adhesive and surface-preparation requirements for the project.
- Commercial review: confirm the B2B project details before production planning.
When a glass-gripping channel is preferred, review the standard shower seal range. Dedicated categories are also available for bottom shower door seals, magnetic shower door seals and sliding shower door seals.
Frequently asked questions
Does GoldRays manufacture adhesive shower door seal profiles?
Yes. GoldRays manufactures and supplies the verified published profiles for B2B buyers. The model images and dimension tables provide references for comparison with a buyer’s application.
Can I select an adhesive seal using dimensions only?
No. The profile section and dimensions are important, but the mounting surface, required function, gap, contact direction and panel movement also affect compatibility.
Does the same adhesive work for every mounting surface?
Do not assume that it does. Provide the substrate and project conditions so the adhesive and surface-preparation requirements can be reviewed for the application.
Can GoldRays compare an existing adhesive seal sample?
GoldRays can review a cut sample, cross-section drawing or clear side-view photographs against existing models. Include measurements and photographs of the installed position.
Are adhesive seals the same as glass-gripping profiles?
They use different mounting arrangements. Identify whether the project requires an adhesive-mounted profile or a channel that grips the glass edge before selecting a model.
Can GoldRays review a custom adhesive profile?
A custom route can be discussed when an existing model does not match the required section. Send the drawing or sample, mounting details and expected project requirements for evaluation.
What should I send for a quotation?
Email goldrays@showerdoorseal.org with the model or profile drawing, mounting surface, required function, gap, panel movement, length, expected quantity and destination market.
When should I use a self-adhesive seal?
Where a clip-on seal cannot grip, for example on a wall or a fixed panel edge, or where the glass edge is hidden in a channel. Clean and dry the surface fully before fitting.
Supply terms
- Minimum order: 500 m per model as a guide; smaller runs are often possible
- Lead time: 3 to 4 weeks for standard orders
- Samples: free, cut lengths up to 1 m
- Custom profiles: tooling typically USD 300 to 400, exclusive to you
- Testing: SGS UV-ageing, mould and REACH SVHC results, see the test results
- Contact: goldrays@showerdoorseal.org
Request a quote · Order free samples
Request an adhesive shower seal review
Compare the verified published models and send the available measurements, drawings or sample photographs to goldrays@showerdoorseal.org. GoldRays will review whether an existing profile can be evaluated for the application or whether a custom discussion is more appropriate.
